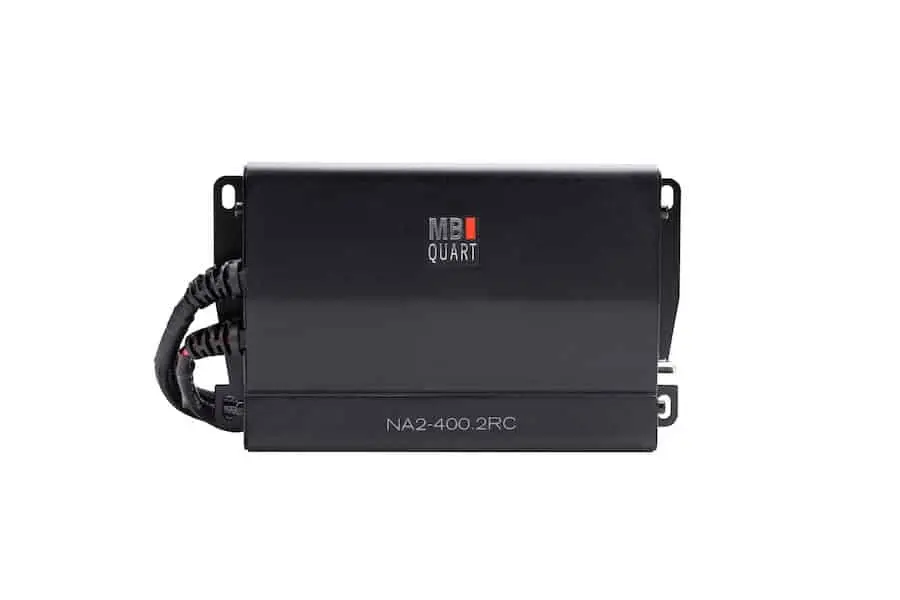

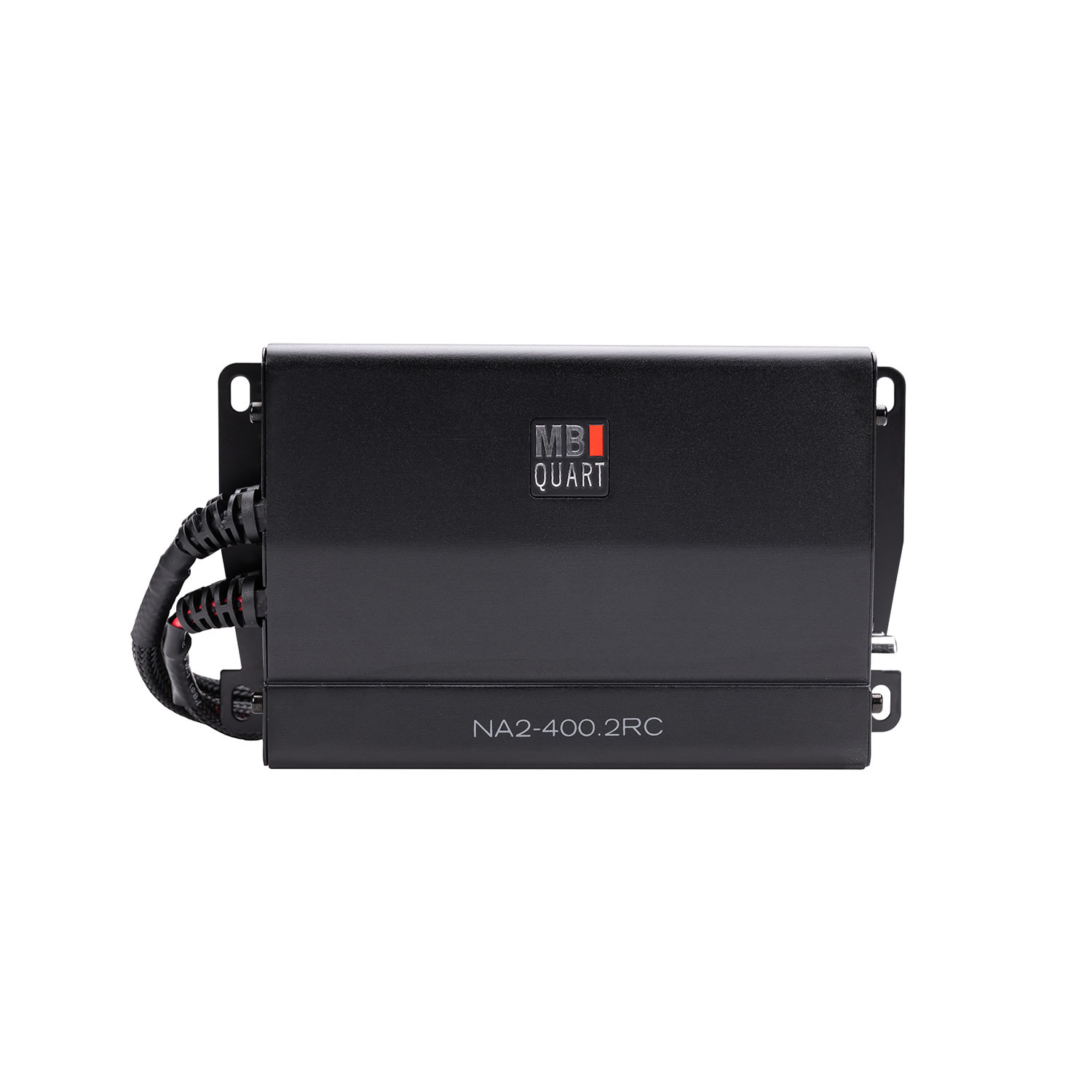

MB QUART RIDE COMMAND SPECIFIC NA2-400.2RC

Description

Two Channel, RIDE COMMAND compatible 400 watt Powersports amplifier with simple installation with quick release connectors.

• 200 Watts x 2 Channels
• Ultra Quiet Integration with RIDE COMMAND
• Adjustable Gain

• CLASS
  Full Range Class D
• TOTAL CHANNELS
  2
• POWER @ 2 OHMS (CH X WATTS)
  2 x 200
• POWER @ 4 OHMS (CH X WATTS)
  2 x 100
• VARIABLE VOLTAGE
  0.2V~9V
• SIGNAL TO NOISE
  >90dB
• FREQUENCY RESPONSE
  20Hz-20kHz
• POWER TERMINAL 12V/GND
  Molex 10 ga
• SPEAKER TERMINAL WIRE GAUGE
  Molex Plug Connector
• FUSING
  1 x 30 Amps

• MARINE GRADE PROTECTION/IPX RATING
  Meets or exceeds IPX5 standards.
• LOW NOISE PREAMPLIFIER CIRCUIT
  The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality.
• RCA INPUTS
  1 pair high temperature impact resistant nickel-plated RCA inputs with hex screw terminals that allow for secure connections and is erosion resistant.
• OPERATION MODE
  Flexible installation allows this amplifier to run in two channel or bridged mono mode.
• CLASS/TOPOLOGY
  Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
• OUTPUT DEVICE TECHNOLOGY
  PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
• HEAT SINK
  Aluminum: Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration.
• POWER SUPPLY
  Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

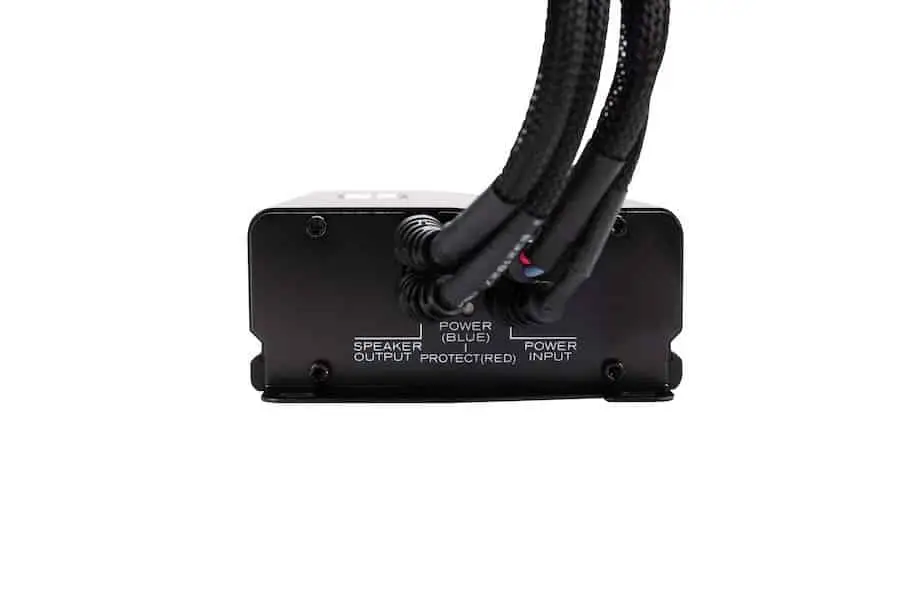

• OUTPUT CONNECTIONS
  Quick Disconnect Wires, RCA Connections: Quickly remove amplifer when you are putting machine up for the winter of as a security precaution.
• CONNECTION TYPE
  Nickel-plated connections: Nickel plated corrosion resistant connections.
• LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
  Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.
