XL-800.4

XL-800.4

$399.99

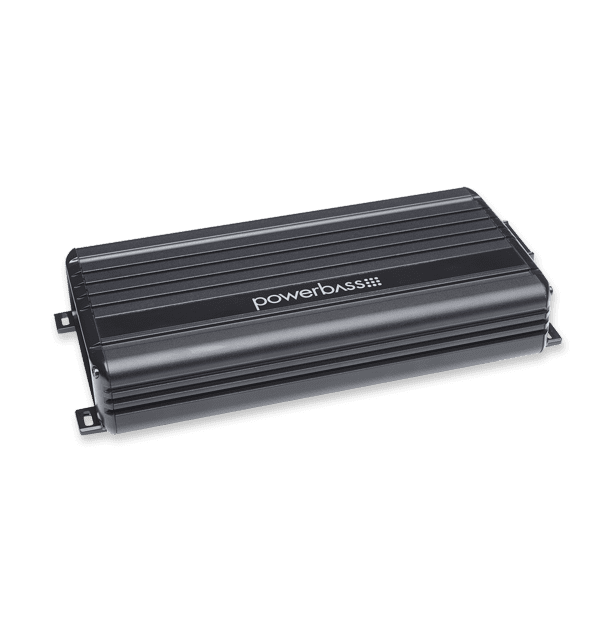

XL-800.4 4ch PowerSport Amplifier

800 Watt High Efficiency Full-Range Class D Design
2-OHM Stable Stereo Amplifier
International Rectifier® Chip Set
Ultra Low Current Draw
Double Sided Copper Plated PCB
Conformal Coated PC Board
PWM MOSFET Power Supply
Digital Sound Optimization Circuitry
High Damping Control Circuit
High Current Voltage Ripple Rejection Circuitry
3.5mm AUX Input
Remote Soft Delay Turn On/Off Circuit
Variable Low/High Pass Electronic Crossover
Variable 12dB Bass Boost EQ
Variable Gain Control
Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.

Specifications

Peak Power: 1600 watts
Subwoofer Frequency Range: 10 Hz – 400Hz
Power Supply: Unregulated PWM
Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
Dimensions (in Inches): 9.6″ x 4.5″ x 1.6″
Depth: 9.6″
Channels (mono): 4
4-ohm Power: 100 watts x 4
4-ohm Mono Power: 400 watts x 2
2-ohm Power: 200 watts x 4
1-ohm Mono Power: N/A
Selectable Subwoofer EQ: 0-18d B Gain @ 45Hz, Rear Ch.
Variable Subsonic Freq: N/A
Equalization Boost/Cut: 0 – 18 dB
Height: 1.6″
Width: 4.5″
Subwoofer EQ Frequency: 45 Hz
Low-Pass Crossover Freq: 40 Hz – 400 Hz
High-Pass Crossover Freq: 40 Hz – 400 Hz
Crossover Slope: 12 dB
Input Sensitivity: 0.25 V – 10.0 V
S/N Ratio: >85 dB
Total Harmonic Distortion: 0.04% at Rated Power
Strapped Output Power @ 2ohms: N/A
Output Power (14.4 V) @ 4 ohm: 100 watts x 4
Output Power (14.4 V) @ 2 ohm: 200 watts x 4
Output Power (14.4 V) @ 1 ohm: N/A
Frequency Response: 10 Hz – 40 kHz
