XL-900.5

XL-900.5

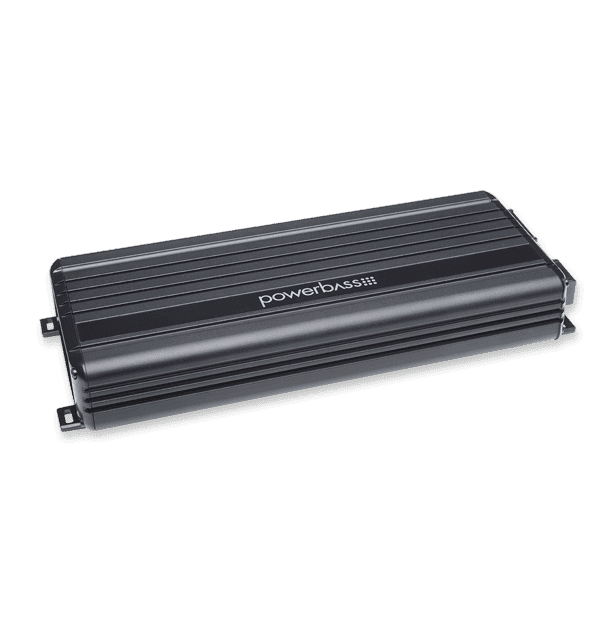

XL-900.5 5ch PowerSport Amplifier

  • 900 Watt 5 Channel High Efficiency Full-Range Class D Design
  • 2-OHM Stable Stereo Amplifier
  • International Rectifier® Chip Set
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • Conformal Coated PC Board
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • High Current Voltage Ripple Rejection Circuitry
  • 3.5mm AUX Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low/High Pass Electronic Crossover
  • Variable 18dB Bass Boost EQ
  • Variable Gain Control
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.

SPRCIFICATIONS



  • Peak Power: 2000 watts
  • Power Supply: Unregulated PWM
  • Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
  • Dimensions (in Inches): 1.6″ x 11.2″ x 4.5″
  • Depth: 4.5″
  • Channels (mono): 5
  • 4-ohm Power: 100 watts x 4 + 500 watts x 1
  • 4-ohm Mono Power: 400 watts x 2 + 500 watts x 1 2Ω
  • 2-ohm Power: 200 watts x 4 + 500 watts x 1
  • 1-ohm Mono Power: N/A
  • Selectable Subwoofer EQ: 0-18d B Gain @ 45Hz, Rear Ch.
  • Variable Subsonic Freq: N/A
  • Equalization Boost/Cut: 0 – 18 dB
  • Height: 1.6″
  • Width: 11.2″
  • Subwoofer EQ Frequency: 0 – 18 dB @ 45 Hz
  • Low-Pass Crossover Freq: 40 Hz – 400 Hz
  • High-Pass Crossover Freq: 40 Hz – 400 Hz
  • Crossover Slope: 12 dB
  • Input Sensitivity: 0.25 V – 10.0 V
  • S/N Ratio: >85 dB
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 100 watts x 4 + 500 watts x 1
  • Output Power (14.4 V) @ 2 ohm: 200 watts x 4 + 500 watts x 1
  • Output Power (14.4 V) @ 1 ohm: N/A
  • Frequency Response: 10 Hz – 40 kHz
