Compact And Powerful

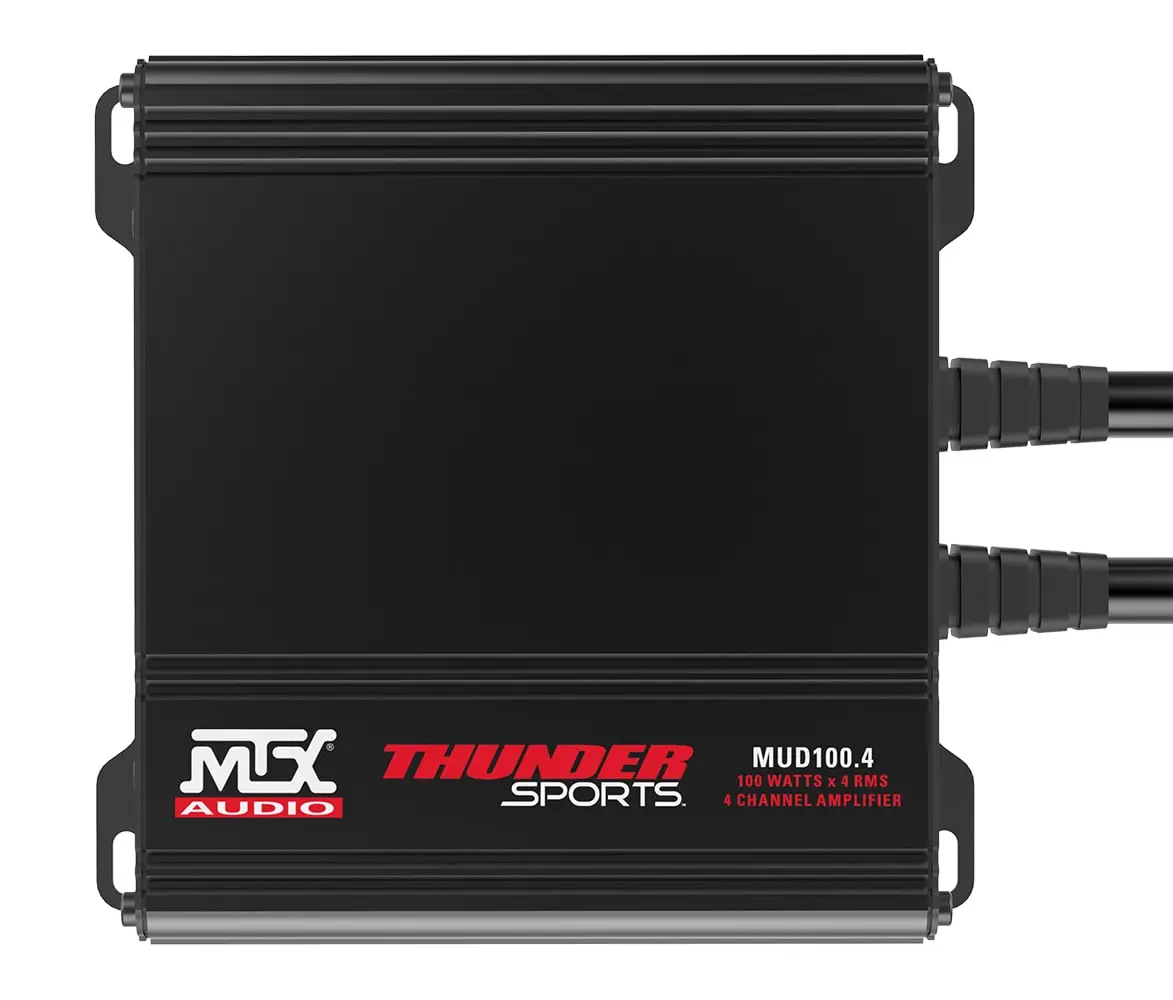

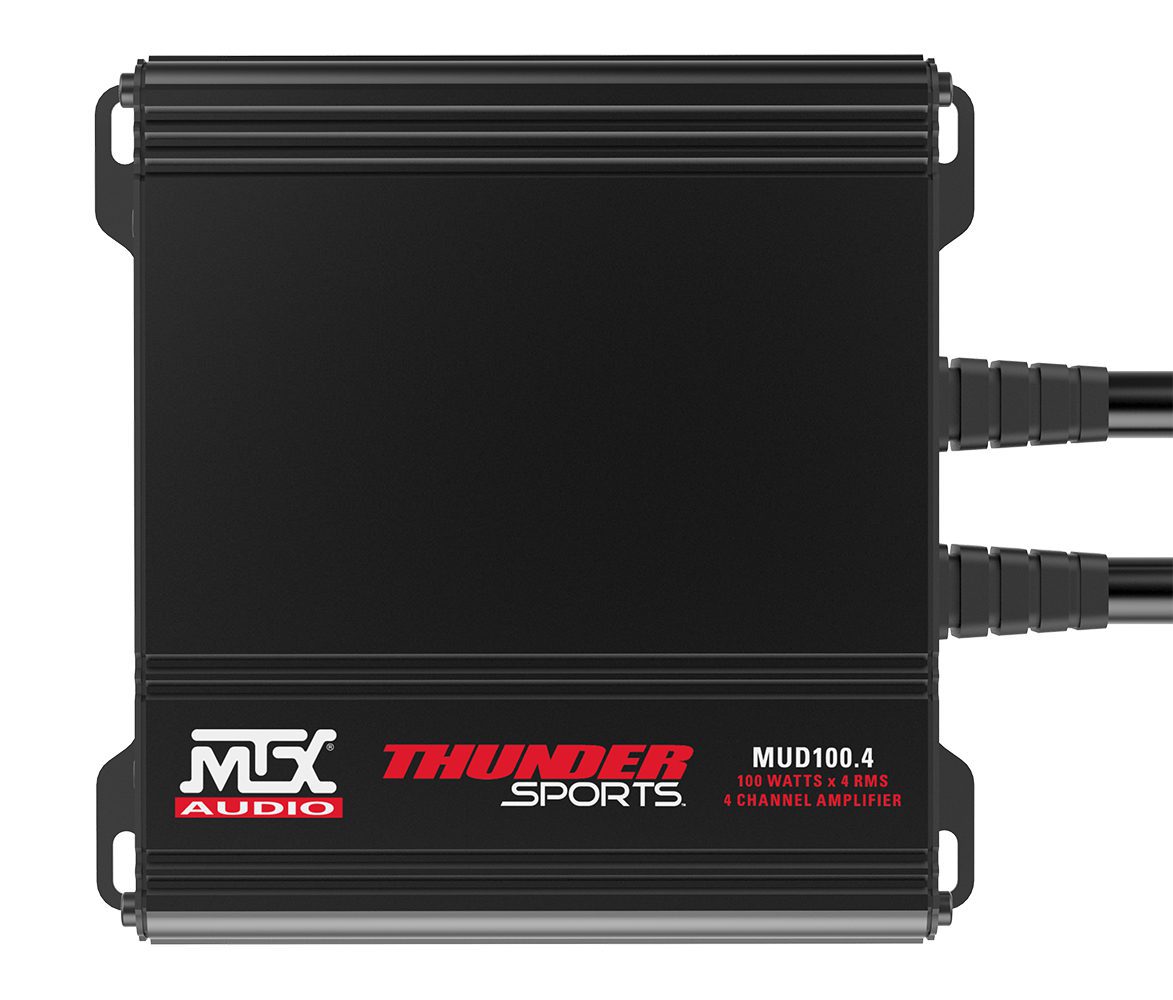

The MTX MUD100.4 features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 4 channels that are capable of delivering 100 watts of RMS power per channel. More than enough power to drive an entire speaker system.

Outdoor Rugged

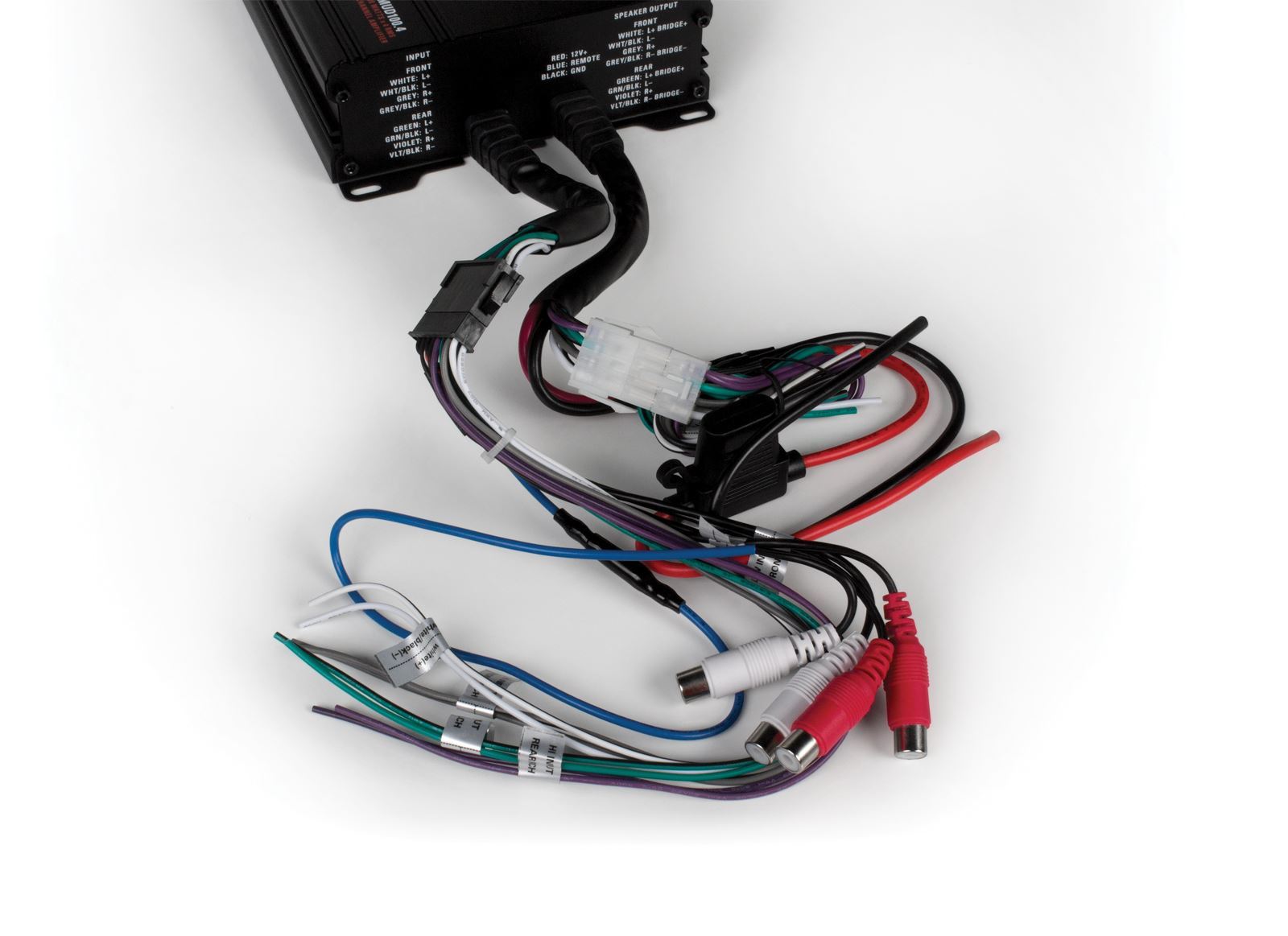

The entire unit is weather resistant including a conformal coated circuit board and control covers that prevent damage from moisture intrusion. The unique design includes a pigtail that contains all of the wiring necessary to connect power, ground, and signal without having to make a connection directly at the amplifier. This pigtail keeps moisture, dirt, and other hazards from harming the internal components of the unit, ensuring you can enjoy your music wherever the trail takes you.

Use it Wherever

The compact nature of the amplifier and its excellent efficiency make it ideal for a variety of applications including UTV’s and motorcycles. The amplifier footprint fits on most OEM motorcycle radios and its resistance to radio frequency interference make it the perfect choice for upgrading the stereo on any motorcycle.

Installation Options

The four channels and full range capability enable the MUD100.4 to drive full range speakers and subwoofers. The unit is bridgeable so four channel of 100-watts RMS power can become two channels of 200-watts RMS power enabling more power to be driven to large cage mount or saddlebag lid speakers so you know you will hear your music at any speed.

Installation Videos

Amplifier Gain Settings

  • Compact Design – The small footprint chassis allows for installation in space challenged vehicles
  • Conformal Coated Circuit Board – Protects against corrosion or circuit deterioration due to exposure to moisture or salt conditions
  • Fixed Crossover – High and Low Pass Crossovers Allow Use with Full Range Speakers or Subwoofers

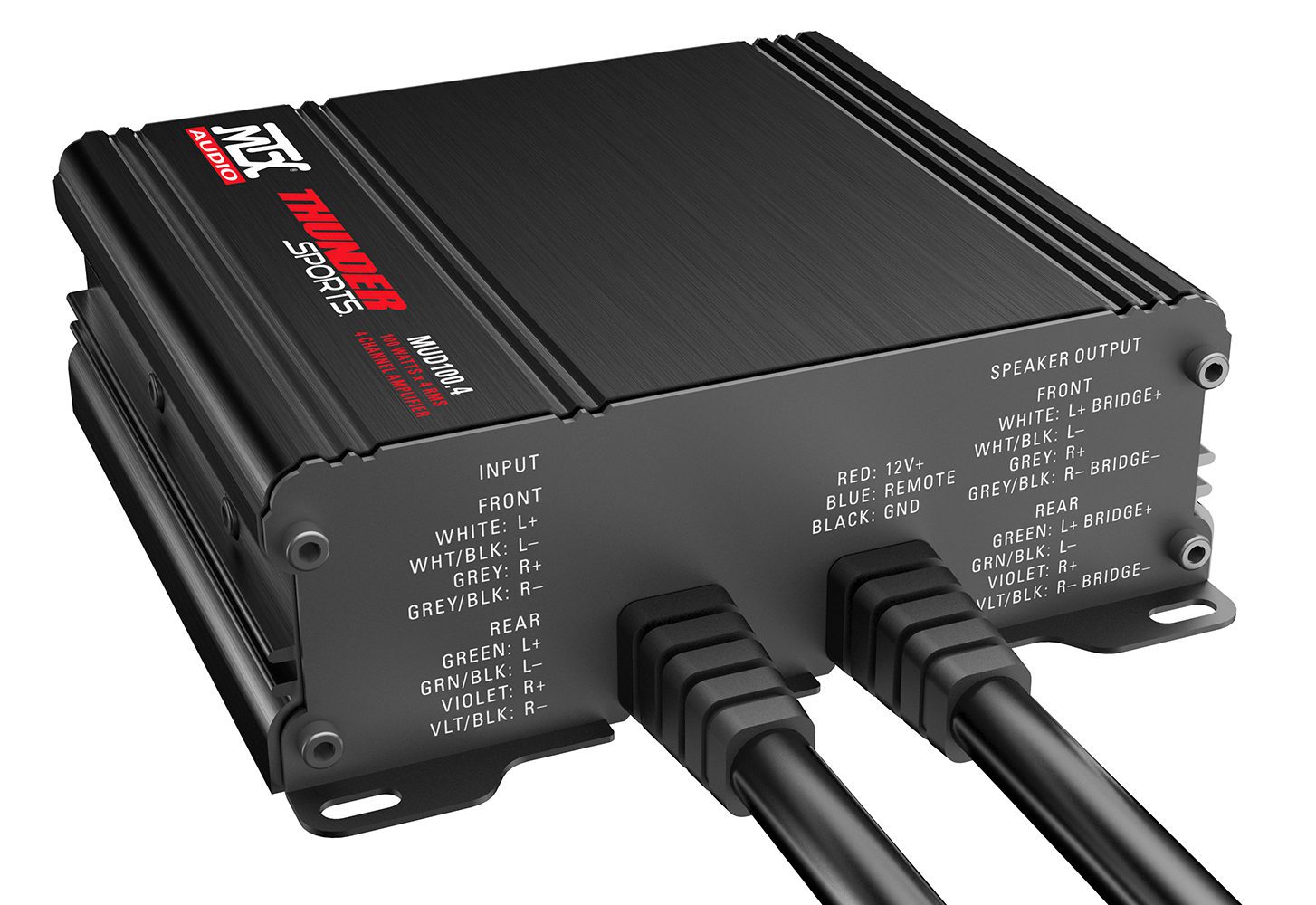

  • High and Low Level Inputs – Allows connection to both Speaker and  RCA Input signals
Description 4-Channel
4Ω RMS Power Output 50W x 4 Channels
2Ω RMS Power Output 100W x 4 Channels
4Ω Bridged 200W RMS x 2 Channels
Topology Full Range Class D
THD <0.2%
Frequency Response 10Hz – 32kHz
Crossover Fixed HPF/LPF @ 80Hz, 12dB/Oct
Max Sensitivity 200mV
Maximum Input Signal 5V
Height 6.52″ (165.5mm)
Width 5.51″ (140mm)
Depth 1.86″ (47.2mm)
