Description

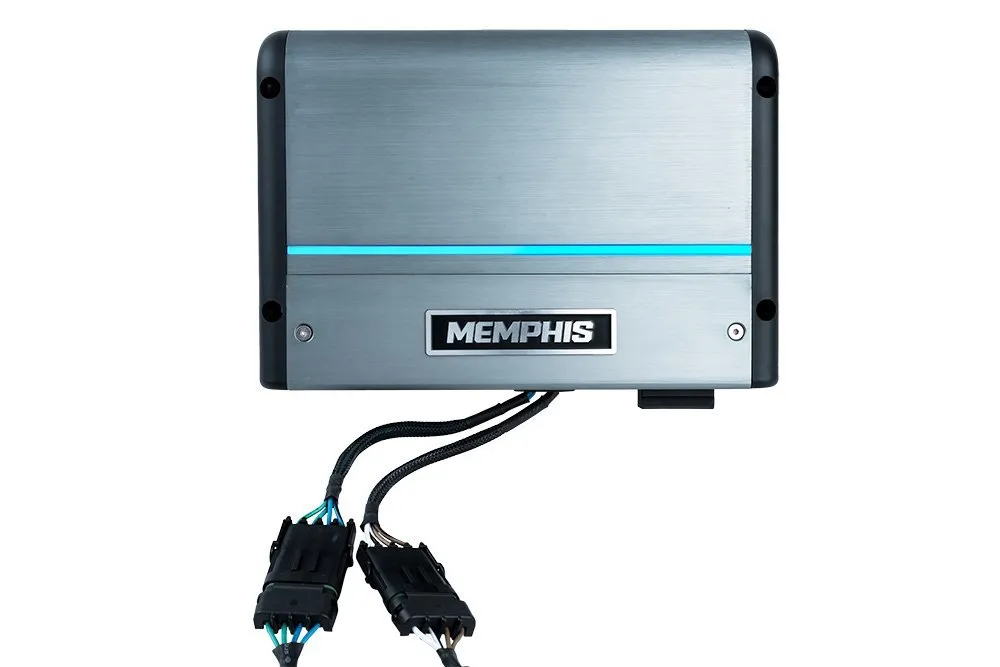

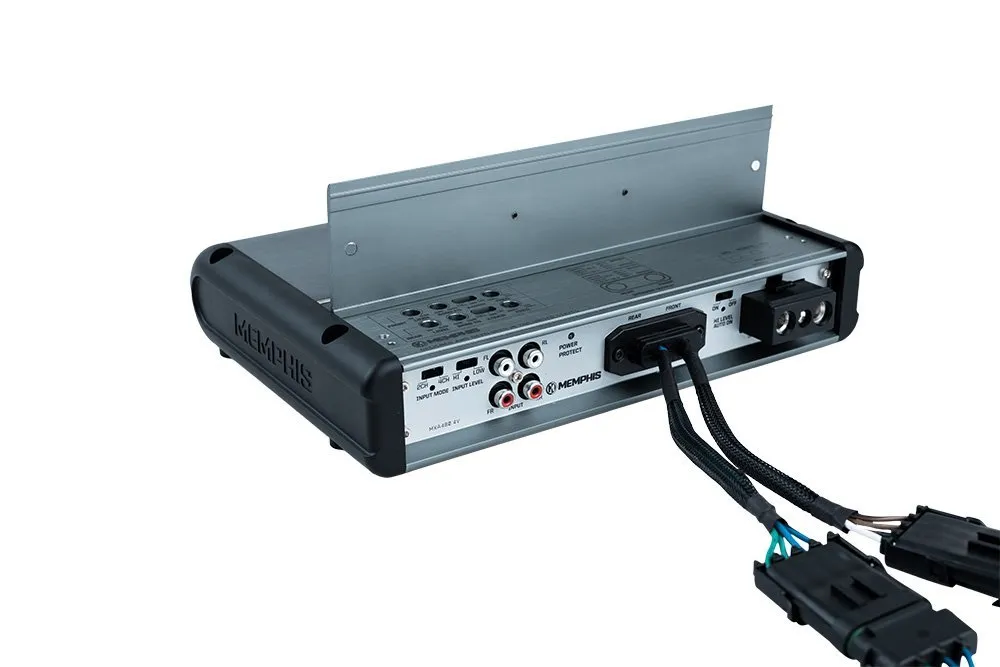

MM Series marine grade amplififiers by Memphis were designed to withstand the water and the elements. These amplififiers feature sealed chassis and conformal coated boards which allows them to perform in the harshest marine environment. These amplififiers feature loads of upgrades geared towards making them the most installer-friendly marine amp ever produced by Memphis. Single sided terminals, removable power lug, sealed outputs with waterproof quick-disconnects and sealed top mounted control panel all make this amplififier extremely durable and user friendly. With 2/4/6 channel options, this is the most complete Marine amp lineup in Memphis history allowing for system desing from simple to extreme.
IPX5 rated
Removable power terminal
Sealed removable signal connectors
Sealed top mount controls
Extruded aluminum heat sink
Signal sensing auto turn on
12dB/octave butterworth crossovers
Input select switch
LED light strip
Protection circuitry against:
Overload, short circuit, thermal & reverse polarity
Variable bass boost (0-12dB) centered at 45Hz
24dB Infrasonic Filter
Fully Variable crossover
Removable power terminal
Sealed removable signal connectors
Sealed top mount controls
Extruded aluminum heat sink
Signal sensing auto turn on
12dB/octave butterworth crossovers
Input select switch
LED light strip
Protection circuitry against:
Overload, short circuit, thermal & reverse polarity
Variable bass boost (0-12dB) centered at 45Hz
24dB Infrasonic Filter
Fully Variable crossover
| MM500.4V | |
| RMS POWER 4Ω | 80 x 4 |
| RMS POWER 2Ω | 125 x 4 |
| RMS POWER 1Ω | – |
| BRIDGED/MONO POWER 4Ω | 250 x 2 |
| THD% 4Ω | <1% |
| FREQ RESPONSE | 10Hz – 25kHz |
| DIMENSIONS L xW x H | 10.5 x 7.3 x 2 |
| INPUT RANGE | 200 mV – 20 V |
| AMP KIT | 8GKIT |
