DS18 NXL-X8PRO

DS18 NXL-X8PRO

SPECS

SKU
NXL-X8PRO
Nominal Diameter
8″ / 203mm
Nominal Impedance
4 Ohm
RMS Power Handling
250W
MAX Power Handling
500W
Sensitivity (1w/1m)
97dB
Frequency Response
80Hz – 20Khz
Recommended HI Pass Crossover
100Hz

BODY / FEATURES

Enclosure Material
Injection PC+ABS
Marine Grade Type
IP65+UV Stable
RGB LED
Integrated LED-RGB Acrylic Ring Lighting 6 Core Wires for Lighting and Speaker
Grill Type
ASA (Injection Grill)
Clamps
Die-Cast Adjustable (1″~2″) 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware(Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
Front Logo
Yes, can be rotated for correct angle display
Rear Logo
Yes, can be rotated for correct angle display
Finish
Matte Black, Glossy White, Glossy Carbon Fiber Texture
Sold in Pair
Yes

WOOFER SPECIFICATIONS

Voice Coil Diameter
1.5″ / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
Water Resistant Paper
Surround Material
Coated Cloth
Basket Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
27 Oz

DRIVER SPECIFICATIONS

Voice Coil Diameter
1″ / 25.4mm
Type
Compression driver with Injection molding ABS horn
Diaphragm Material
Titanium
Magnet Material
Neodymium
Crossover
6dB/Oct
Horn Diameter
3.26″ / 83mm

THIELE & SMALL PARAMETERS

Equivalent Volume
10L / 0.35ft3
Excursion (one way)
9.2mm
Free Air Resonance
135Hz
Mechanical Factor
5.96
Electrical Factor
1.321
Total Factor
1.011
Mechanical Mass
9.69g
Mechanical Compliance
137.345 mm/N
BL Factor
4.580
Voice Coil Inductance
4.22mH
Cone Area
226.98 Cm2
DC Resistance
3.4 ohms
Mechanical Mass w/o air
7.724g

SPEAKER MEASUREMENT

Overall Diameter
8.6″ / 218mm
Overall Depth
9.4″ / 238mm
Overall Height
12.3″ / 313mm

Show Less

PRODUCT OVERVIEW

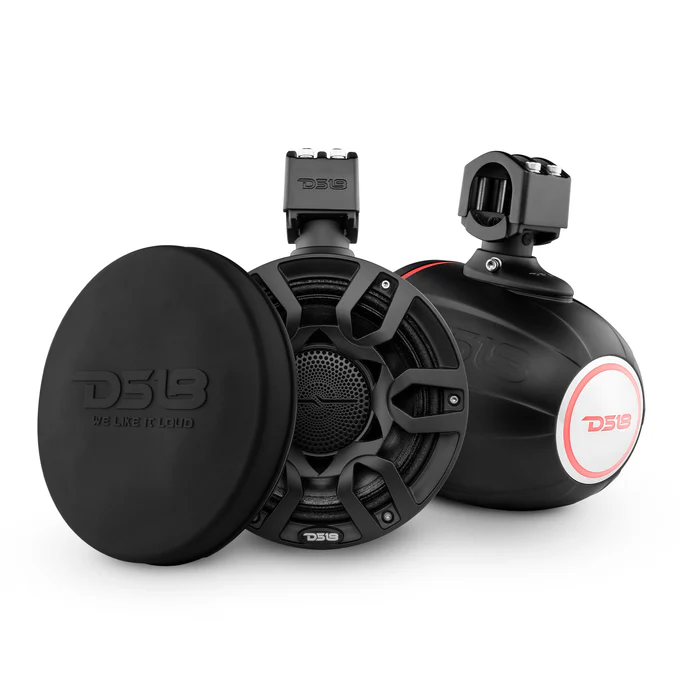

DS18 NXL-X8PRO

8″ Compact Wakeboard Tower Speakers with Hybrid Mid-Range, Compression Driver Loudspeaker, RGB LED Lights, 500 Watts, Speaker Cover Included

Unleash the full potential of your car audio system with DS18’s NXL-X8PRO, the ultimate 8″ Compact Wakeboard Tower Speakers that redefine what’s possible in Marine Audio.
These speakers come with a Pro Audio Water Resistant Hybrid Mid-Range & Compression Driver Loudspeaker, the PRO-HY8.4B, which covers an impressive frequency range from 80Hz to 20KHz. This ensures you hear every detail in your music, from the deep bass to the crisp highs, for a truly immersive sound.
Built to withstand the elements, the NXL-X8PRO features an injection PC+ABS enclosure that’s both durable and UV-stable. The magnets in the PRO-HY8.4B compression driver provide unmatched strength, ensuring these speakers stand the test of time, no matter the conditions.
Get ready for a visual treat as well. The NXL-X8PRO comes with integrated RGB LED Lighting that adds a dynamic light show to your car interior. With the LED BTC (Sold Separately), you have control over the lighting effects, creating a captivating visual experience that complements your music perfectly.
Installation is a breeze with the adjustable clamps designed for 1″ to 2″ roll cages or tubes. These speakers fit seamlessly into any space, and the rotatable logos guarantee optimal sound projection and aesthetics.
Join the ranks of marine audio enthusiasts worldwide who have elevated their driving experience with DS18’s NXL-X8PRO. Upgrade your sound system today and rediscover your favorite music like never before.
