DS18 MP4TP.4A

DS18 MP4TP.4A

SPECS

SKU
MP4TP.4A
Speaker Type / Size
4″ Tower Speakers
Sound System Components
4 x Tower Speakers (MP4TP/BK) + 4 Ch Amplifier (MP.4A) + BT Receiver (BTRC-R)
Total Max Power Handling
600W
Frequency Response
60Hz-20KHz
Voltage Operation
9-15V DC

BODY / FEATURES

Marine Grade Type
IPX5 + UV Stable
RGB LED
NO
Clamps
Tube Type Fixed with pads for 1-1/2″ to 2″
Front Logo
Yes
Finish
Matt Black
Sensitivity
89 dB
Total Impedance
4 Ohm (Each Tower)

WOOFER SPECIFICATIONS

Voice Coil Diameter
1″ / 25.4mm
Voice Coil Former Material
ASV
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
Steel with Black protection coating
Magnet Material
Ferrite
Magnet Weight
11 Oz
Magnet Diameter
3.14″ / 80mm

TWEETER SPECIFICATIONS

Voice Coil Diameter
1″ / 25mm
Voice Coil Former Material
ASV
Winding Material
CCAW
Type
Dome
Diaphragm Material
PEI
Magnet Material
Neodymium
Magnet Weight
45g
Crossover
6dB/Oct

AMPLIFIER SPECIFICATIONS

Amplifier Class
Stereo Full Range
Amplifier Type
Digital
Number of Channels
4 Channels
Total RMS Power Handling
4 x 40W @ 4 Ohms
Total MAX Power Handling
4 x 120W @ 4 Ohms
Minimum Impedance
4 ohms
Signal to Noise Ratio
82dB
Power Input Terminal Size
16 Ga
Fuse Size
20 Amp
Thermal Protection
Yes (>75?C / 167?C)
Over-Load Protection
Yes
DC Output Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (<9.2V / >16V)

BT RECEIVER SPECIFICATIONS

Frequency Response
20Hz-20KHz
Signal to Noise Ratio
>80dB
T.H.D
<0.1%
Channel Separation
>60dB
Voltage Operation
DC 12-14.4V
Fuse Size
5 Amp
BT Version
5.0
Wireless Range
>130 ft (conditions may vary)
Waterproof Rating
IPX6
USB Charging Capacity
1 amp
USB Files Format Compatible
MP3 / WMA

Show Less

PRODUCT OVERVIEW

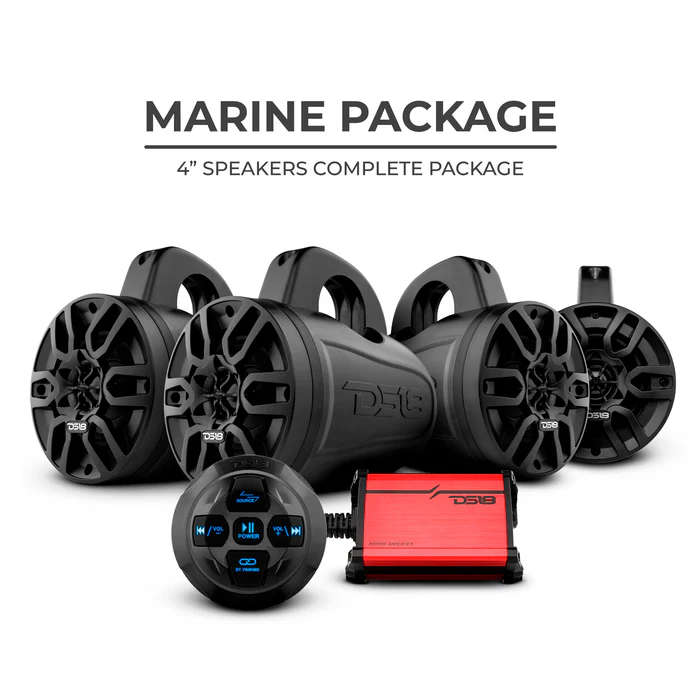

DS18 MP4TP.4A

4 x HYDRO 4″ Wakeboard Tower Speakers 600 Watts Black with Amplifier and Bluetooth Remote Control BTRC-R

Introducing DS18’s MP4TP.4A – the ultimate audio package designed to elevate your marine audio experience to new heights. Crafted with the extreme attention to detail, the MP4TP.4A combines some of DS18’s top-of-the-line components for marine audio enthusiasts like you.
The MP4TP’s are built to withstand any obstacles you face during your adventures. No matter if you’re battling the crashing waves or navigating rough terrains, the MP4TP/BK speakers will deliver unparalleled audio quality that will leave you in awe. With a frequency response ranging from 60Hz to 20KHz, these speakers deliver an immersive audio experience that is sure to captivate you. And with a sensitivity of 89 dB, these speakers maximize power efficiency, ensuring that every watt is utilized to its full potential
