DS18 NXL-X10TPNEO

DS18 NXL-X10TPNEO

SPECS

SKU
NXL-X10TPNEO
Nominal Diameter
10″
Nominal Impedance
4 Ohm
RMS Power Handling
300W
MAX Power Handling
900W
Sensitivity (1w/1m)
100 dB
Frequency Response
45Hz – 22KHz
Recommended HI Pass Crossover
55 Hz
Colors Available
Black, White, Red, Carbon Fiber

BODY / FEATURES

Enclosure Material
Injection ASA
Marine Grade Type
IP65+UV Stable
RGB LED
Integrated LED-RGB Speaker Lighting, Integrated LED-RGB Acrylic Ring Lighting, and with 6 Core Wires for Lighting and Speaker
Grill Type
ASA + 316 Stainless Metal Mesh
Pair
Yes
Clamps
Die-Cast Adjustable (1″~2″) 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware(Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
Front Logo
Yes, can be rotated for correct angle display
Rear Logo
Radiator Fixed Position

WOOFER SPECIFICATIONS

Voice Coil Diameter
2″
Cone Material
Waterproof Compress Paper
Surround Material
Soft PC Damping Glued
Basket Material
PC Injection Molded Composite
Magnet Material
Neodymium
Magnet Grade
N40H
Passive Radiator
6.1? with LED RGB Light

TWEETER SPECIFICATIONS

Voice Coil Diameter
1.5″
Type
compression driver with CNC solid aluminum horn
Diaphragm Material
polyimide
Magnet Material
Neodymium
Crossover
12dB with over power protection

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
33.24 L
Excursion (one way) Xmax
6 mm
Free Air Resonance Fs
62 Hz
Total Factor Qts
0.7371

SPEAKER MEASUREMENT

Overall Diameter
10.76″ / 273.3 mm
Overall Depth
15.21″ / 386.4 mm
Overall Height
14.32″ / 363.9 mm

Load More

PRODUCT OVERVIEW

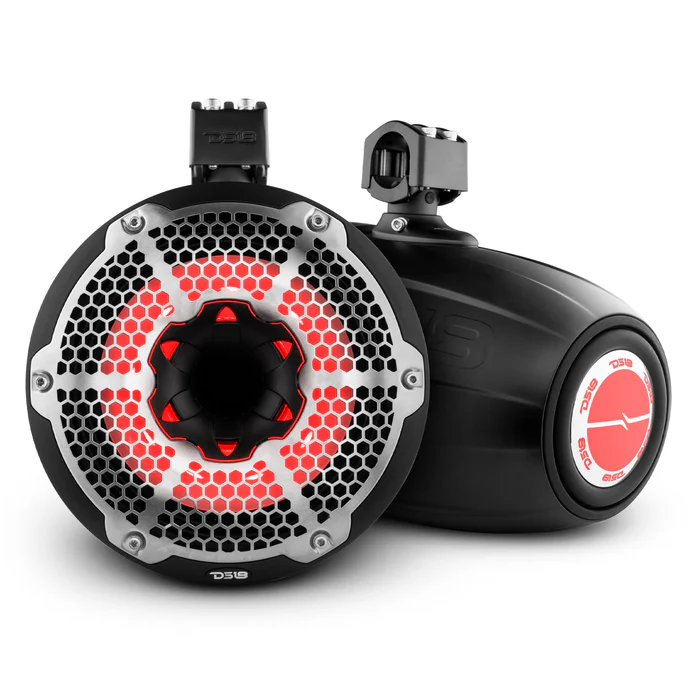

DS18 NXL-X10TPNEO

10″ Marine Water Resistant Wakeboard Tower Neodymium Speaker with Built-in passive Radiator Bass Enhancer, 1″ Driver and RGB LED Light 900 Watts

Elevate your Marine Audio experience to unprecedented heights with DS18’s NXL-X10TPNEO 10″ Marine Tower Speaker.
The NXL-X10TPNEO stands as a true powerhouse, with the ability to handle an impressive 900W of MAX power, it’s prepared to captivate your auditory senses. Pairing a 10-inch HYDRO Speaker with an integrated tweeter results in a dynamic combination that brings depth and precision to your audio experience.
The NXL-X10TPNEO features an expertly crafted passive woofer radiator that elevates your audio encounters. By integrating this technology, the speaker achieves enhanced bass response, filling your surroundings with rich, resonant low frequencies. As you play your favorite songs, the passive woofer radiator works in harmony with the main speaker, intensifying the depth of each note and beat so your bass isn’t just heard – it’s felt.
The NXL-X10TPNEO’s clamping system is the cornerstone of its stability and resilience. With a remarkable 360-degree rotation capability, you can set the speaker at the ideal angle to direct the sound precisely where you want it. Whether you choose a buried wire or open wire mounting approach, the NXL-X10TPNEO’s clamps offer adaptability to suit your setup preferences.
Your audio is safeguarded by the marine-grade durability of the NXL-X10TPNEO. Its IP65 + UV stable construction withstands the elements, while the ABS + 316 stainless metal mesh grill adds a touch of elegance to its rugged demeanor.
Equipped with RGB LED lighting, seamlessly integrated into its design, the speaker casts a captivating cascade of colors. From the speaker itself to its rings and even the passive woofer radiator, each element becomes a canvas for a vibrant visual experience.
