SPECS
SKU
NXL-X6TP
Nominal Diameter
6.5 inch
Nominal Impedance
4 Ohm
RMS Power Handling
100W
MAX Power Handling
300W
Sensitivity (1w/1m)
91 dB
Frequency Response
65 Hz – 23 KHz
Recommended HI Pass Crossover
80Hz
BODY / FEATURES
Enclosure Material
Injection PC+ABS
Marine Grade Type
IP65+UV Stable
RGB LED
Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting and LED-RGB Back Logo with 6 Core Wires for Lighting and Speaker
Grill Type
ASA (Injection Grill)
Pair
Yes
Clamps
Die-Cast Adjustable (1″~2″) 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware(Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
Front Logo
Yes, can be rotated for correct angle display
Rear Logo
Yes, can be rotated for correct angle display
Color Available
Black, White, Red, Carbon Fiber
WOOFER SPECIFICATIONS
Voice Coil Diameter
1.2 inch
Cone Material
Waterproof Injection Polypropylene
Surround Material
Butyl
Basket Material
PC Injection Molded Composite
Magnet Material
Ferrite + Reverse Neodymium
Magnet Grade
Y35+N40H
Passive Radiator
No
TWEETER SPECIFICATIONS
Voice Coil Diameter
1 inch
Type
Dome PEI Surround
Diaphragm Material
Titanium
Magnet Material
Neodymium
Crossover
6dB/Oct
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
8.5 L
Excursion (one way) Xmax
4 mm
Free Air Resonance Fs
65 Hz
Total Factor Qts
0.622
SPEAKER MEASUREMENT
Overall Diameter
6.93″ / 176.1mm
Overall Depth
11.37″ / 288.8mm
Overall Height
10.7″ / 271.7mm
Show Less

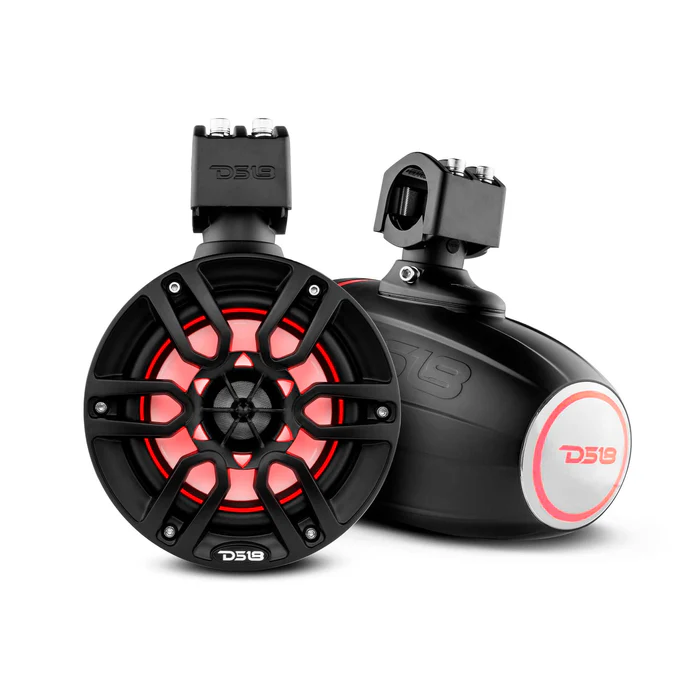

6.5″ Marine Water Resistant Wakeboard Tower Speakers with Integrated RGB LED Lights 300 Watts
DS18’s NXL-X6TP’s are built to withstand the harshest vibrations, toughest abuse, and wildest off-road adventures. These tower speakers birthed the current design of our clamping system that has become synonymous with excellence.
DS18’s NXL-X6TP features a voice coil diameter of 1.2″ for the woofer and 1″ for the tweeter, chosen for optimal audio reproduction. With a frequency range spanning from 65Hz to 23Khz, these tower speakers deliver a symphony that covers the entire spectrum of sound – from the crisp clarity of the high notes to the deep rumble of the bass.
Elevate your bass experience to an entirely new dimension with the integrated passive woofer radiator on DS18’s NXL-X6TP. This revolutionary addition isn’t just about producing more bass – it’s about delivering bass that you can feel. With DS18’s NXL-X6TP’s passive woofer radiator, the impact of your music becomes tangible, transforming your audio into a sensation that’s as exciting as it is electrifying.
Every detail of DS18’s NXL-X6TP has been meticulously designed to ensure that your audio system seamlessly integrates with your vehicle. The die-cast adjustable clamps offer a range of 1″ to 2″ and a 360-degree rotation, allowing you to position your speakers exactly where they belong for the best possible audio projection.
Step into a world of visual enchantment with the DS18 NXL-X6TP’s integrated RGB LED lights. With the ability to shine any color you desire, the DS18 NXL-X6TP’s integrated RGB LED lights let you paint your surroundings with your musical palette, turning every ride into a captivating visual experience.
