SKU
JVOCE8
Nominal Diameter
Dual 8″ / 211mm
Nominal Impedance
4+4 Ohms
RMS Power Handling
2 x 250W
MAX Power Handling
2 x 500W
Sensitivity (1w/1m)
99dB
Frequency Response
60Hz-20KHz
Recommended HI Pass Crossover
80Hz

BODY/FEATURES

Enclosure Material
High density plastic molded with color injected
Marine Grade Type
IP65 + UV Protected
RGB LED
YES, Around the Grill
Grill Type
Plastic ABS injected
Clamps
2 x Die-Cast Flat Bracket for Jeep JL Roll Cage or universal fit, 2 x Tube Clamp Adjustable (2″~3″) 360 Degree Rotation Mounting, Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Threadlocker Glue)
Front Logo
Yes
Finish
Matte Black
Input Wire
Speaker x 2 (stereo configuration) + RGB Lights

WOOFER SPECS

Voice Coil Diameter
1.5″ / 38.6mm
Cone Material
Waterproof Paper
Surround Material
Cloth
Basket Material
Aluminum
Magnet Material
Ferrite
Magnet Weight
27 Oz

DRIVER SPECS

Voice Coil Diameter
1″ / 25.4mm
Type
High Compression Horn
Diaphragm Material
Titanium
Magnet Material
Neodymium
Crossover
6 dB/Oct Filter
Horn Diameter
3″ / 76.2mm

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
10.048L
Excursion (one way) Xmax
9.2mm
Free Air Resonance Fs
135Hz
Total Factor Qts
1.011

ENCLOSURE MEASUREMENT
Overall Width
19.44″ / 494mm
Overall Depth
6.41″ / 163mm
Overall Height (without Clamp)
10.11″ / 257mm
Gross Single Unit Weight (lb)
21.5
Single Unit Box Dimensions W x L x H (Inches)
23.75 x 8.75 x 12.25
Quantity of Units in Master Carton
2
Gross Master Carton Weight
45.5
M/C Dimensions W x L x H (Inches)
24.5 x 17.75 x 14

Show Less

PRODUCT OVERVIEW

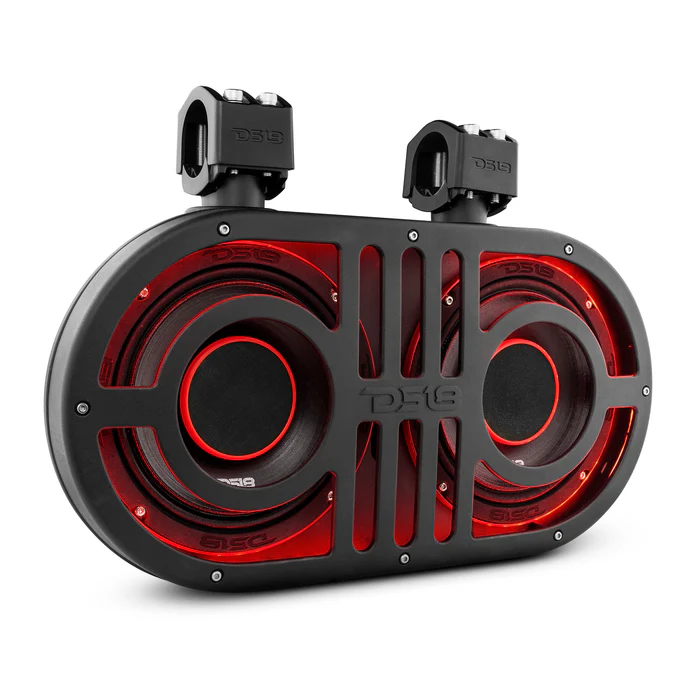

DS18 JVOCE8

Jeep or ATV Roll Cage Pod With Dual 8” Hybrid Mid-Range / Driver Horn Loudspeakers

As the leaders in Jeep Audio, DS18 is back with the ultimate tower system designed to bring high powered audio to Jeep’s everywhere!
The JVOCE8 Roll Cage Pod encloses two of our loudest water resistant Hybrid Speakers: the PRO-HY8.4B, a high powered speaker with a high intensity driver built into its frame! The inclusion of this high compression horn increases the range of frequencies this speaker reproduces to as high as 20KHz.
The combination of the midrange ferrite motor and tweeter neodymium motor is built specifically to allow them to get louder than your usual tower speakers and perform at a higher rate of efficiency for intense sessions that never end!
The JVOCE8 is designed with extremely durable mold injected plastic to withstand the worst of the elements and outlast any build it’s installed into. The plastic grill helps protect your Hybrid Speakers and has RGB LED’s strung around the inside for easy mood matching! (LED BTC SOLD SEPARATELY)
These Pro Audio speakers can handle RMS Power of 500W, which is about 4 times more than a traditional pod speaker. Traditional water resistant speakers have to make sacrifices for loudness and sensitivity to achieve the waterproof rating, where the JVOCE’s do not.
Mount these speakers almost anywhere with DS18’s highly functional pole clamps for installation onto Roll Bars or Mounting Tubes, or use our Flat Mount for even more mounting options.
Made for light water use, not direct exposure to submersion or pressure washing!
