SPECS
SKU
NXL-X6TPNEO
Nominal Diameter
6.5 inch
Nominal Impedance
4 Ohm
RMS Power Handling
150W
MAX Power Handling
450W
Sensitivity (1w/1m)
93 dB
Frequency Response
70 Hz – 21 KHz
Recommended HI Pass Crossover
90Hz
BODY / FEATURES
Enclosure Material
Injection PC+ABS
Marine Grade Type
IP65+UV Stable
RGB LED
Integrated LED-RGB Speaker Lighting Integrated LED-RGB Acrylic Ring Lighting and LED-RGB Back Logo with 6 Core Wires for Lighting and Speaker
Grill Type
ABS+316 Stainless Metal Mesh
Pair
Yes
Clamps
Die-Cast Adjustable (1″~2″) 360 Degree Rotation Mounting Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware(Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue)
Front Logo
Yes, can be rotated for correct angle display
Rear Logo
Yes, Radiator Fixed position
Finish
Matte Black / Gloss White / Gloss Red
WOOFER SPECIFICATIONS
Voice Coil Diameter
1.5 inch
Cone Material
Waterproof Compress Paper + Carbon Fiber
Surround Material
Soft PC Damping Glued
Basket Material
PC Injection Molded Composite
Magnet Material
Neodymium
Magnet Grade
N40H
Passive Radiator
Yes, 3.5″ With LED RGB Light
TWEETER SPECIFICATIONS
Voice Coil Diameter
1 inch
Type
Compression Driver with CNC Solid Aluminum Horn
Diaphragm Material
PEN
Magnet Material
Neodymium
Crossover
12dB with Over Power Protection
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
8.5 L
Excursion (one way) Xmax
3 mm
Free Air Resonance Fs
75 Hz
Total Factor Qts
0.783
SPEAKER MEASUREMENT
Overall Diameter
6.93″ / 176.1mm
Overall Depth
11.33″ / 287.8mm
Overall Height
10.7″ / 271.7mm
Show Less

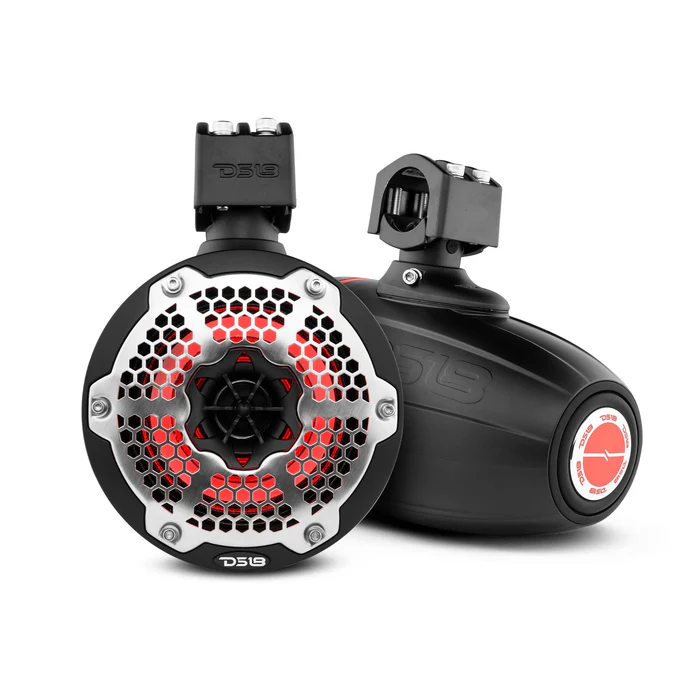

8″ Marine Water Resistant Wakeboard Tower Neodymium Speaker with Built-in passive Radiator Bass Enhancer, 1″ Driver and RGB LED Light 180W
Elevate your Marine Audio experience to unprecedented heights with DS18’s NXL-X8TPNEO 8″ Marine Tower Speaker.
The NXL-X8TPNEO stands as a true powerhouse, with the ability to handle an impressive 550W of MAX power, it’s prepared to captivate your auditory senses. Pairing a 8-inch HYDRO Speaker with an integrated tweeter results in a dynamic combination that brings depth and precision to your audio experience.
The NXL-X8TPNEO features an expertly crafted passive woofer radiator that elevates your audio encounters. By integrating this technology, the speaker achieves enhanced bass response, filling your surroundings with rich, resonant low frequencies. As you play your favorite songs, the passive woofer radiator works in harmony with the main speaker, intensifying the depth of each note and beat so your bass isn’t just heard – it’s felt.
The NXL-X8TPNEO’s clamping system is the cornerstone of its stability and resilience. With a remarkable 360-degree rotation capability, you can set the speaker at the ideal angle to direct the sound precisely where you want it. Whether you choose a buried wire or open wire mounting approach, the NXL-X8TPNEO’s clamps offer adaptability to suit your setup preferences.
Your audio is safeguarded by the marine-grade durability of the NXL-X8TPNEO. Its IP65 + UV stable construction withstands the elements, while the ABS + 316 stainless metal mesh grill adds a touch of elegance to its rugged demeanor.
Equipped with RGB LED lighting, seamlessly integrated into its design, the speaker casts a captivating cascade of colors. From the speaker itself to its rings and even the passive woofer radiator, each element becomes a canvas for a vibrant visual experience.
