DS18 NXL-6/BK

$159.95

TECHNICAL DATA

DOWNLOAD THE USER MANUAL

SPECS

SKU
NXL-6/BK
Nominal Diameter
6.5″ / 165mm
Nominal Impedance
4 Ohm
RMS Power Handling
100W
MAX Power Handling
300W
Sensitivity (1w/1m)
91dB
Frequency Response
45Hz-23KHz
Recommended HI Pass Crossover
65 Hz

BODY / FEATURES

UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED
Yes, RGB integrated
Grill Type
Injection Molded Composite ASA with UV Protection coating
Pair
Yes
Color / Finish
Matte Black

WOOFER SPECIFICATIONS

Voice Coil Diameter
1.2″ / 30.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
14oz + 0.32oz

TWEETER SPECIFICATIONS

Nominal Diameter
1″ / 25.4mm
Voice Coil Diameter
1″ / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium + PEI Surround
Magnet Material
Neodymium (N38H)
Magnet Weight
0.54oz

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
20L / 0.708ft3
Excursion (one way) Xmax
8.5 mm
Free Air Resonance Fs
75Hz
Mechanical Factor Qms
7.823
Electrical Factor Qes
1.057
Total Factor Qts
0.931
Moving Mass Mms
4.122g
Compliance Cms
1.081mm/N
Bl Factor Bl
2.41
Voice Coil Inductance Le
0.543mH
Cone Area Sd
114.99cm2
DC Resistance Re
3.14 ohms
Efficiency Bandwidth Product EBP
70.9

SPEAKER MEASUREMENT

Overall Diameter
6.94″ / 176mm
Overall Depth
3.72″ / 94.4mm
Front Mount Baffle Cutout
5.31″ / 135mm
Mounting Depth
2.5″ / 63.5mm
Motor Diameter
3.54″ / 90mm
Gross Single Unit Weight (lb)
7
Single Unit Box Dimensions W x L x H (Inches)
106.5 x 8.75 x 4.75
Quantity of Units in Master Carton
4
Gross Master Carton Weight (lb)
30.5
Master Carton Dimensions W x L x H (Inches)
19.75 x 17.25 x 9.75

Load More

PRODUCT OVERVIEW

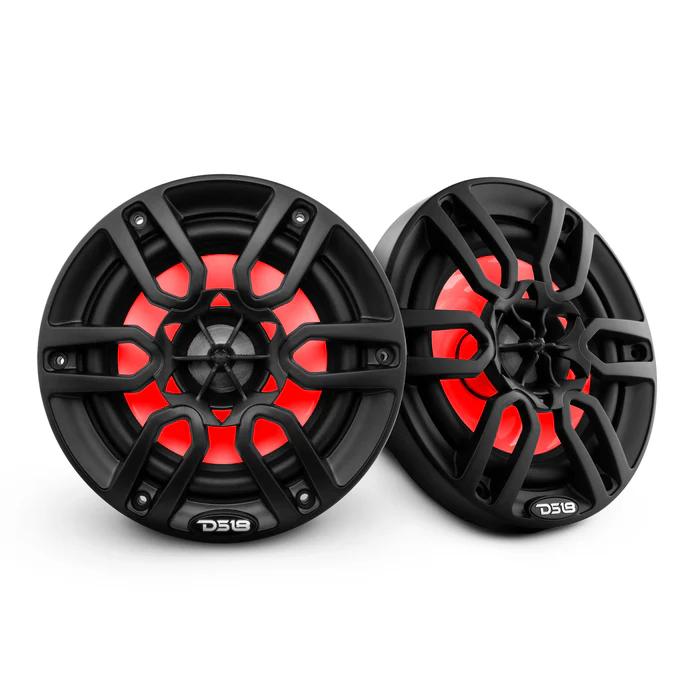

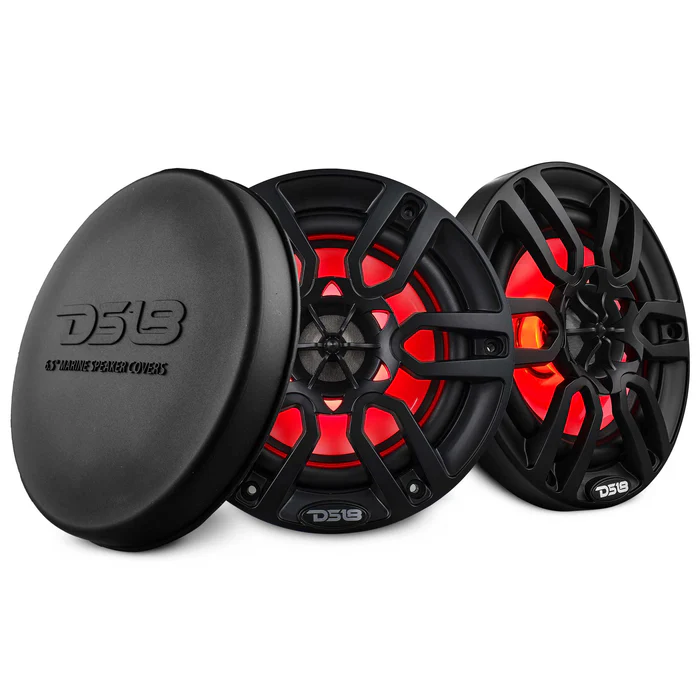

DS18 NXL-6/BK

6.5” 2-Way Marine Speakers With Integrated RGB LED Lights 300W (Matte Black) (Pair)

DS18’s NXL-6/BK are not only designed to deliver breathtaking sound quality but also to withstand the harshest marine and off-road conditions.
DS18’s NXL-6/BK boasts a sleek and rugged design that not only catches the eye but also performs like a champion. Crafted for durability and performance, these speakers feature IP65 Marine Grade Compliant Specifications, making them resistant to the corrosive effects of saltwater, UV rays, and extreme temperatures. The high temp injection-molded composite construction guarantees resilience against the most demanding conditions, while the ASA grills with UV coating ensure long-lasting aesthetics.
The NXL-6/BK can handle an impressive 100W of RMS power, giving you the volume and clarity you crave. Equipped with Y35 Ferrite Main Magnet and Reverse Neodymium, these speakers deliver astonishingly clear and powerful sound. Thanks to the revolutionary 2-way design that incorporates a 25mm Titanium Dome Tweeter, you’ll experience the full range of frequencies, capturing every nuance of your favorite tracks. The NXL-6’s sensitivity of 91dB at 1 w/m, will leave you astounded by the level of detail and precision in every note.
These models of DS18’s HYDRO NXL-6/BK speakers immerse you in a world of vivid color with the integrated RGB LED lighting. DS18 has left no detail overlooked, allowing you to customize your audio system to match your mood or style. With the optional DS18 LED-BTC or any other RF/BT/Wi-Fi Controller (sold separately), you have full control over the multi-function RGB LED lighting, daring you to create a showstopping system.
