TECHNICAL DATA
SPECS
SKU
CF-10M
Nominal Diameter
10″ / 254mm
Nominal Impedance
4 Ohm
RMS Power Handling
200W
MAX Power Handling
600W
Sensitivity (1w/1m)
94.3dB
Frequency Response
35Hz-20Khz
Recommended HI Pass Crossover
50Hz
BODY / FEATURES
UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED
Yes, RGB integrated
Grill Type
Injection Molded Composite (ASA) with 316 Stainless Steel mesh
Pair
Yes
Color / Finish
Carbon Fiber Texture / Gloss
WOOFER SPECIFICATIONS
Voice Coil Diameter
1.5″ / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite with UV Protection coating
Magnet Material
Ferrite (Y35) + Neodymium (N35)
Magnet Weight
50oz + 0.56oz
TWEETER SPECIFICATIONS
Voice Coil Diameter
1″ / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
PEN
Magnet Material
Neodymium (N38H)
Magnet Weight
0.51oz
THIELE & SMALL PARAMETERS
Equivalent Volume Vas
197.13L / 6.96ft3
Excursion (one way) Xmax
6mm
Free Air Resonance Fs
42Hz
Mechanical Factor Qms
6.874
Electrical Factor Qes
0.838
Total Factor Qts
0.747
Moving Mass Mms
11.37g
Compliance Cms
1.264mm/N
Bl Factor Bl
3.4
Voice Coil Inductance Le
0.60712mH
Cone Area Sd
333.29 cm2
DC Resistance Re
3.2ohms
Efficiency Bandwidth Product EBP
50.12
SPEAKER MEASUREMENT
Overall Diameter
10.7″ / 274mm
Overall Depth
5.7″ / 144.7mm
Front Mount Baffle Cutout
8.75″ / 222mm
Mounting Depth
4.2″ / 106.6mm
Motor Diameter
5.3″ / 135mm
Gross Single Unit Weight (lb)
20.5
Single Unit Box Dimensions W x L x H (Inches)
23 x 12.75 x 7.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
42
Master Carton Dimensions W x L x H (Inches)
23.5 x 14 x 16
Load More

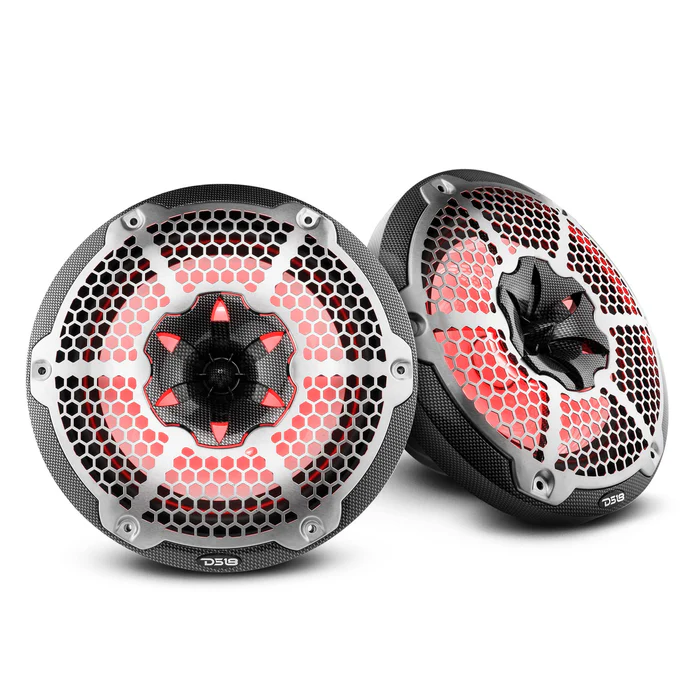

NXL 10″ 2-Way Coaxial Marine Speaker With LED RGB Lights 200 Watts Rms 4-Ohm – Carbon Fiber
Prepare to be amazed by the innovative design and exceptional performance of DS18’s CF-10M!
Engineered to withstand the harshest elements, the CF-10M speakers feature an impressive IP65 waterproof rating, ensuring durability and longevity. The carbon fiber laminate construction, fortified with protective layers, guarantees a sturdy and reliable speaker that can handle any marine environment.
These speakers also come equipped with integrated RGB lighting on the metal mesh grill, allowing you to customize your sound system with vibrant colors. The waterproof cones combined with the mesmerizing LED lights create an eye-catching visual experience that complements your boat’s aesthetic perfectly.
When it comes to sound quality, the CF-10M delivers unparalleled performance. The 10-inch speakers produce a rich, full-bodied sound that is unmatched in open-air environments like being out on the water. With RMS Power Handling at 200W and MAX Power Handling of 600W, you will experience every nuance and detail of your favorite music with these powerful speakers.
With an integrated tweeter and mid-range woofer, DS18’s CF-10M offer the full range of frequencies and exceptional sound clarity. The exclusive metal mesh grill design not only adds a touch of style but also provides ultimate protection for your investment.
Upgrade your marine audio system with DS18’s CF-10M and elevate your boating experience to new heights.
