TWEETER SPECIFICATIONS

Nominal Diameter
1″ / 25.4mm
Voice Coil Diameter
1″ / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium + PEI Surround
Magnet Material
Neodymium (N38H)
Magnet Weight
0.54oz

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
66.7L / 2.35ft3
Excursion (one way) Xmax
8.5 mm
Free Air Resonance Fs
56Hz
Mechanical Factor Qms
7.701
Electrical Factor Qes
0.899
Total Factor Qts
0.805
Moving Mass Mms
7.265g
Compliance Cms
1.119mm/N
Bl Factor Bl
2.98
Voice Coil Inductance Le
0.49mH
Cone Area Sd
206.12cm2
DC Resistance Re
3.15ohms
Efficiency Bandwidth Product EBP
62.2

SPEAKER MEASUREMENT

Overall Diameter
8.59″ / 218.2mm
Overall Depth
4.45″ / 113mm
Front Mount Baffle Cutout
6.97″ / 177mm
Mounting Depth
3.09″ / 78.5mm
Motor Diameter
4.32″ / 110mm
Gross Single Unit Weight (lb)
10.5
Single Unit Box Dimensions W x L x H (Inches)
20.25 x 10.25 x 5.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
22.5
Master Carton Dimensions W x L x H (Inches)
20.5 x 11 x 11

Show Less

PRODUCT OVERVIEW

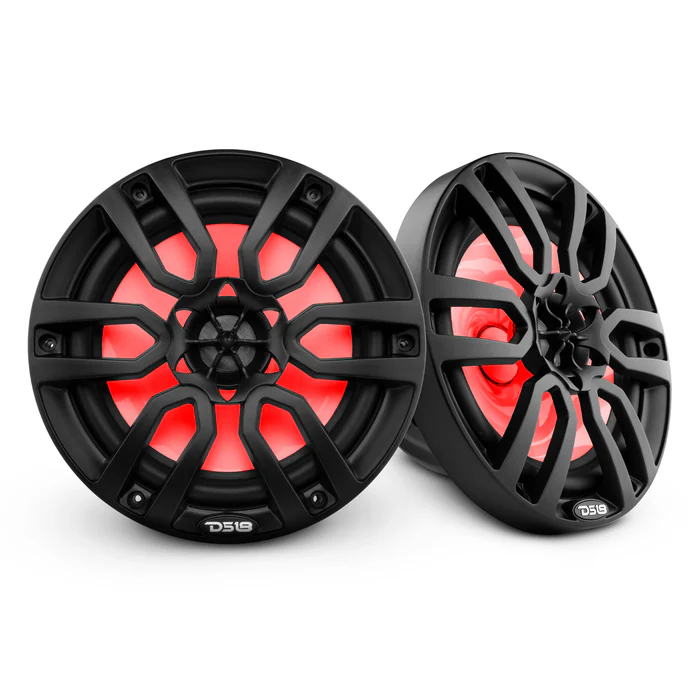

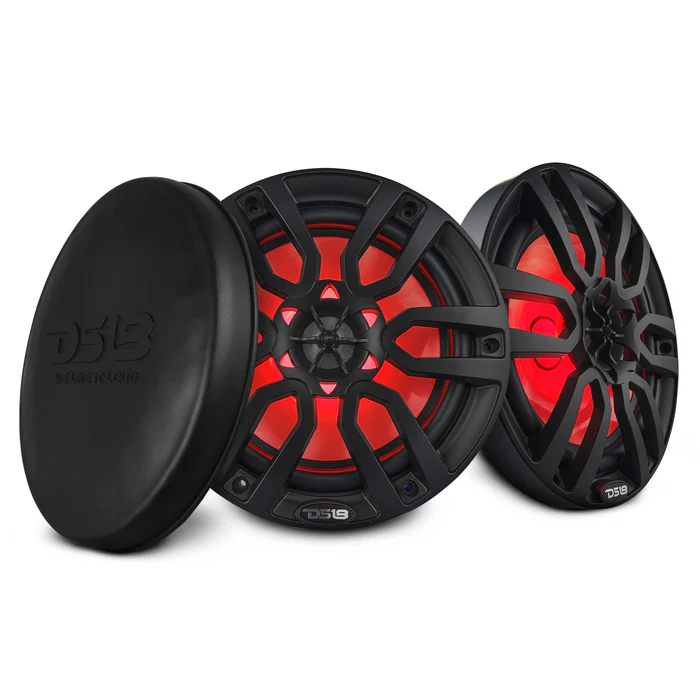

DS18 NXL-8/BK

8” 2-Way Marine Speakers With Integrated RGB LED Lights 375W (Matte Black) (Pair)

DS18’s NXL-8/BK are not only designed to deliver breathtaking sound quality but also to withstand the harshest marine and off-road conditions.
DS18’s NXL-8/BK boasts a sleek and rugged design that not only catches the eye but also performs like a champion. Crafted for durability and performance, these speakers feature IP65 Marine Grade Compliant Specifications, making them resistant to the corrosive effects of saltwater, UV rays, and extreme temperatures. The high temp injection-molded composite construction guarantees resilience against the most demanding conditions, while the ASA grills with UV coating ensure long-lasting aesthetics.
The NXL-8/BK can handle an impressive 125W of RMS power, giving you the volume and clarity you crave. Equipped with Y35 Ferrite Main Magnet and Reverse Neodymium, these speakers deliver astonishingly clear and powerful sound. Thanks to the NXL-8’s revolutionary 2-way design that incorporates a 25mm Titanium Dome Tweeter, you’ll experience the full range of frequencies, capturing every nuance of your favorite tracks. The NXL-8’s sensitivity of 93dB at 1 w/m, will leave you astounded by the level of detail and precision in every note.
These models of DS18’s HYDRO NXL-8/BK speakers immerse you in a world of vivid color with the integrated RGB LED lighting. DS18 has left no detail overlooked, allowing you to customize your audio system to match your mood or style. With the optional DS18 LED-BTC or any other RF/BT/Wi-Fi Controller (sold separately), you have full control over the multi-function RGB LED lighting, daring you to create a showstopping system.
