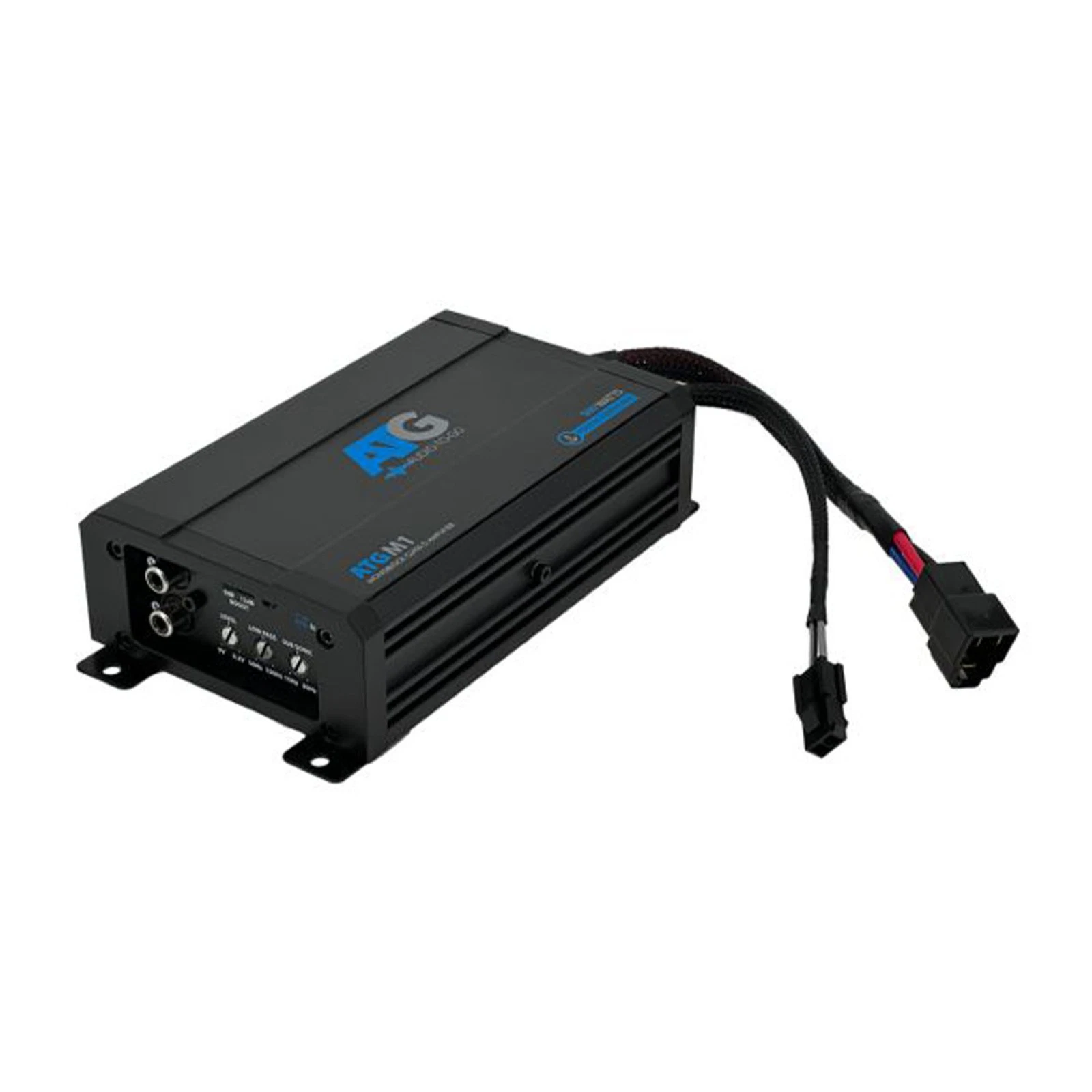

ATG M1

Specifications –
• Output Power @ 14.4 VDC, 2-Ohms 1 x 500W
• Output Power @ 14.4 VDC, 4-Ohms 1 x 250W
• Power Supply Input Voltage 12.0VDC to 14.8VDC
• Mono Class D Technology
• 2-Ohms Mono load Capability
• Marine Grade Nickel Plated RCA connectors
• Variable 12db Low-pass crossover
• Selectable 12dB Bass Boost
• Variable Sub-sonic Filter
• Marine Grade Conformal Coated Double Sided PCB
• Compatible with any 4/2-Ohms Subwoofer
• THD (1KHz @ 4-Ohms): 0.04%
• Bandwidth (-3 dB): 18Hz – 22KHz
• Damping Factor (1KHz @ 4-Ohms): 100
• S/N ratio (as weighted @ 1 Volt): 99db
• Input Sensitivity: .0.2MV – 6V
• Minimum Load Impedance: 2-Ohms
• Low-Pass filter range: 50Hz – 150Hz
• Sub-Sonic Filter Range: 15Hz – 50Hz
