XL-600.1

$334.99

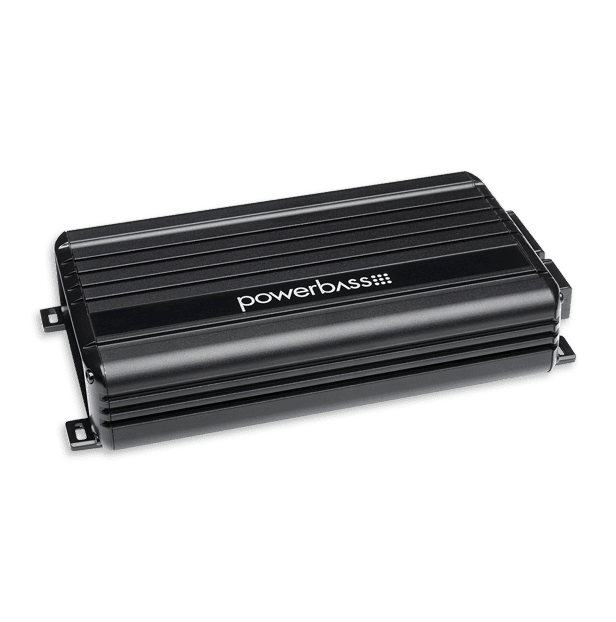

XL-600.1D Monoblock PowerSport Amplifier

  • 600 Watt High Efficiency Class D Design
  • 1-OHM Stable Mono Block Amplifier
  • Ultra Low Current Draw
  • Double Sided Copper Plated PCB
  • Flipped Conformal Coated PC Board
  • PWM MOSFET Power Supply
  • Digital Sound Optimization Circuitry
  • High Damping Control Circuit
  • Variable Subsonic Filter
  • High Current Voltage Ripple Rejection Circuitry
  • 3.5mm AUX Input
  • Remote Soft Delay Turn On/Off Circuit
  • Variable Low Pass Electronic Crossover
  • Variable 12dB Bass Boost EQ
  • Variable Gain Control
  • Wired Secondary Remote Gain Control Included
  • Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.

Specifications

  • Peak Power: 1200 watts
  • Subwoofer Frequency Range: 10 Hz – 250 Hz
  • Power Supply: Unregulated PWM
  • Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
  • Dimensions (in Inches): 8.4″ x 4.5″ x 1.6″
  • Depth: 8.4″
  • Channels (mono): 1
  • 4-ohm Power: 250 watts x 1
  • 4-ohm Mono Power: 250 watts x 1
  • 2-ohm Power: 400 watts x 1
  • 1-ohm Mono Power: 600 watts x 1
  • Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
  • Variable Subsonic Freq: 10 Hz – 50 Hz
  • Equalization Boost/Cut: 0 – 18 dB
  • Height: 1.63″
  • Width: 4.5″
  • Subwoofer EQ Frequency: 45 Hz
  • Variable Subwoofer EQ: 0 – 18 dB
  • Low-Pass Crossover Freq: 50 Hz – 250 Hz
  • High-Pass Crossover Freq: N/A
  • Crossover Slope: 24 dB
  • Input Sensitivity: 0.25 V – 10.0 V
  • S/N Ratio: >85 dB
  • Total Harmonic Distortion: 0.4% at Rated Power
  • Strapped Output Power @ 2ohms: N/A
  • Output Power (14.4 V) @ 4 ohm: 250 watts x 1
  • Output Power (14.4 V) @ 2 ohm: 400 watts x 1
  • Output Power (14.4 V) @ 1 ohm: 600 watts x 1
  • Frequency Response: 10 Hz – 300 Hz
