$549.99

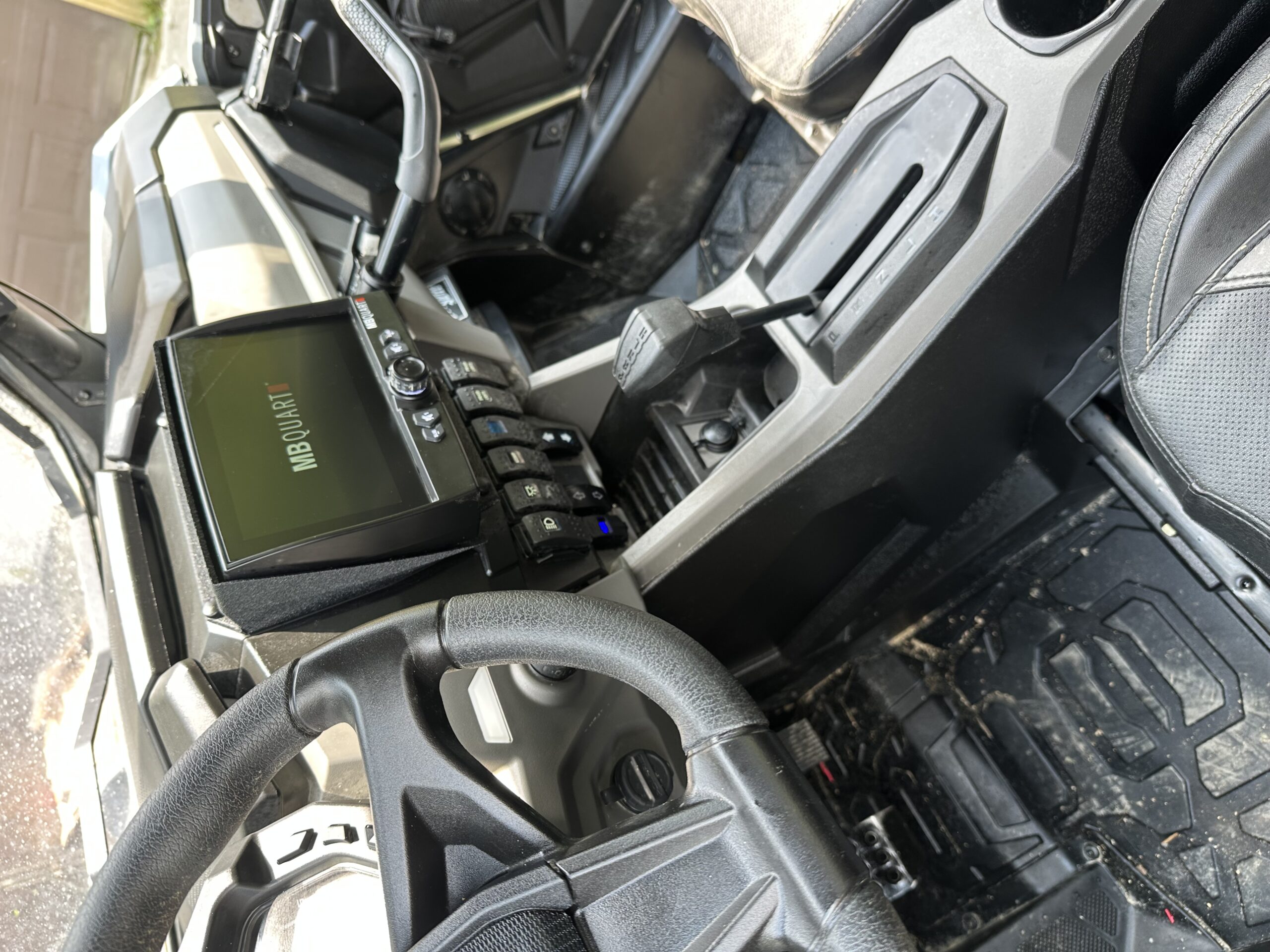

WE HAVE THE PERFECT SOLUTION FOUR YOUR SPORT MODELS THAT WANT A TOP OF THE LINE RECEIVER WITH ALL THE FEATURES YOU COLD EVER WANT. THIS KIT ALLOWS YOU TO MOUNT THE GMR7 MB QUART RECEIVER IN ALL THE PRO NON RIDE COMMAND MODELS. KIT INCLUDES GMRS CAR PLAY RECEIVER AND MOUNTING KIT.
| Type | Source Unit |
|---|---|
| Brand | MB Quart |
| Series | GMR |
| Category | Marine, Powersports, RV |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| IPX Rating | IP67 |
| Compatible Vehicles | Universal |
| Source Unit Tuner Section FM Stereo Frequency Range | 87.5MHz-107.9MHz |
| Source Unit Bluetooth Range (ft) | 32 |
| Source Unit Frequency Response (Aux In) | 20Hz-20kHz |
| Source Unit Pre-amp Outputs (Y/N #) | 3 Pair Front/Rear/Subwoofer, Yes |
| Source Unit Pre-amp Voltage | 4.0V |
| Source Unit Minimum Impedance (ohms) | 150 |
| Source Unit Display Type | 7-Inch Full Color LED Touchscreen Panel |
| Source Unit Dimensions Mounting Hole (in) | 6.5 x 8.25 |
| Source Unit Dimensions Total Mounting Depth (in) | 2.5 |
| Additional Details | Preamp Output Voltage: 4 volts; Dual Zone Capability between Preamp Outputs and Built-in Power; Independent Subwoofer Level Control with Selectable Low Pass Filter; 10-Band Graphic EQ (64, 150, 250, 500, 1K, 2K, 4K, 6K, 10K, and 16K) |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Compatible Vehicle Fitment | Universal |
|---|---|
| Marine Grade Protection / IPX Rating | Meets or exceeds IP67 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors. |
| Apple® Control | Wireless and Wired Apple® CarPlay® |
| Source Type | AM/FM/WB/Bluetooth® allows all access to radio stations and content from Bluetooth enabled devices. |
| Input Types | Bluetooth, RCA, USB: Nearly nothing the device cannot play. |
| Control Buttons | Unit has a master knob, zone mute buttons, sub level buttons, and a full touchscreen 7-inch display. |
| Bluetooth® Connect | Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the source unit without a complicated pairing process. |
| Secure Simple Pairing™ | Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. |
| Quick-Pair™ | No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select “GMR7V1” from your Bluetooth menu and you are connected, QUICKLY. |
| Control Method | Unit is adjusted by a master knob, 4 control buttons, and a 7 inch touchscreen panel. |
| AM/FM Tuner Presets | AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations each. |
| Frequency Range | USA Frequency: FM87.5 – 107.9MHz / AM530 – 1710kHz |
| RDS Information | Yes |
| Weather Band | Includes built-in weather band radio. NOAA NWR Weather Band Frequency: Preset (162.400MHz, 162.425MHz, 162.450MHz, 162.475MHz, 162.500MHz, 162.525MHz, 162.550MHz). |
| Video Input | Two video camera inputs via a RCA style connector (No Audio). One video output via a RCA style connector (No Audio). |
| Video Input Trigger | Two ground wire triggers, one for each video input. |
| Additional Inputs | 1 Pair (Aux), 1 Composite Video (Camera), 1 Microphone Input |
| USB / Apple® / Charging Port | Two USB ports – USB 1(Gray) For Music. USB 2(Black) for iPhone/Smart Phones. |
| Bluetooth® Version | Version 5.0 |
| Album Art | Yes |
| Main Connector Type | MOLEX connector for simple installation and removal of unit when needed. |
| Dual Audio Zone Capability | Control volume in two different areas independently, such as passenger area and tower speakers. |
| Media Screen | 7-inch high-contrast touchscreen display |
| Additional Features | Built-In Auxiliary Switching System: 4 aux trigger outputs 300mA MAX; Built-In RGB Lighting Controller: 500mA MAXX |
