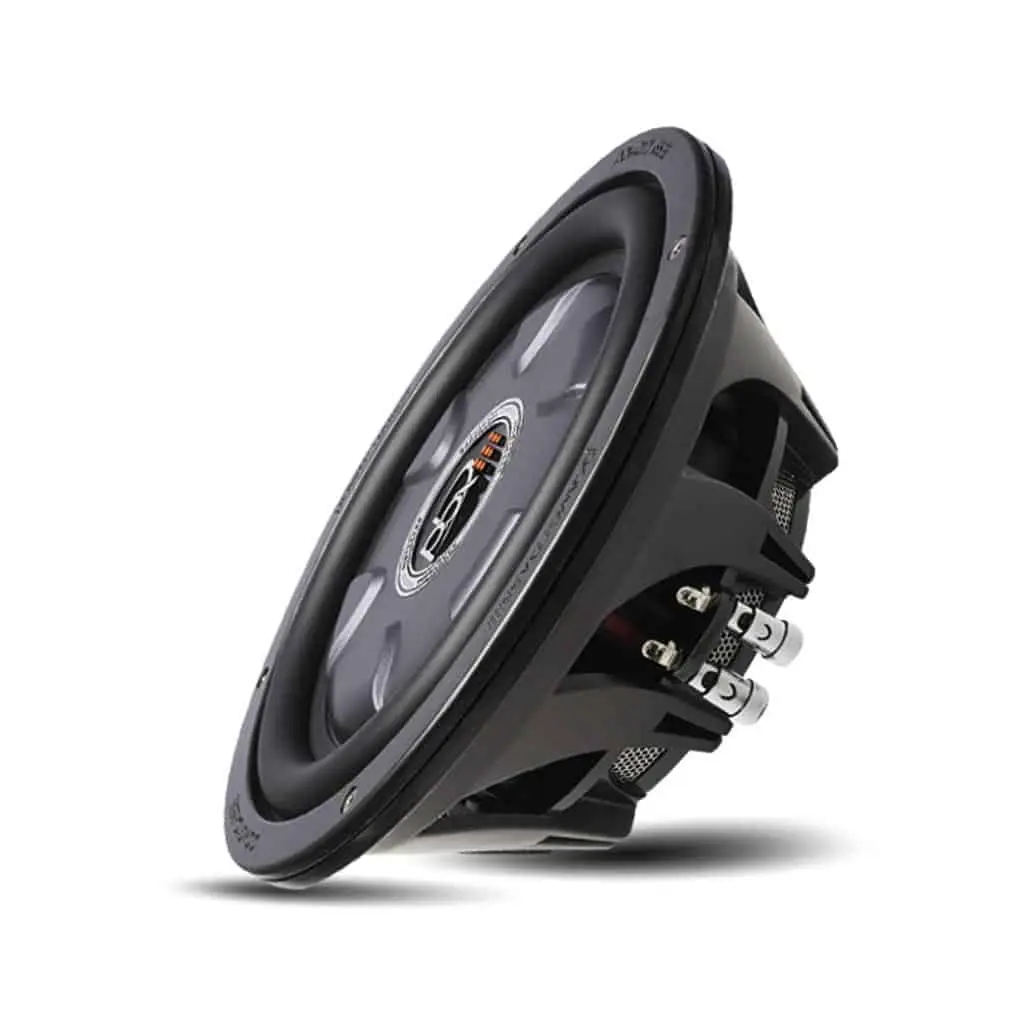

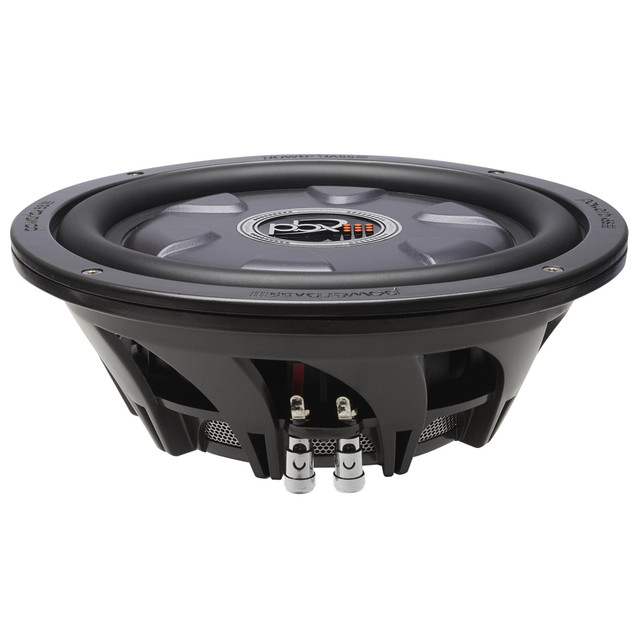

PowerBass XL-1240TD 12″ Dual 4-Ohm Shallow Mount Subwoofer

The proprietary one piece cone gives accurate and efficient bass to a system without taking a whole lot of space. Designed to work best in a small sealed enclosure that will fit in most spaces that a standard woofer won’t opens up new possibilities for the most discerning music fan.

Using the same turbine style Poly/Glass Fiber basket as the standard XL subwoofers this shallower version offers all the features and reliability from the Xtreme family. Boasting a flat injection molded cone and inverted ferrite magnet these drivers come in nearly 2-inches shorter than their standard XL counterparts.

Features –
• New PBX logo dust cap
• 12″ Shallow Mount Subwoofer Dual 4-Ohm Subwoofer
• 400 Watts RMS/800 Watts Max
• Proprietary Single Piece Injection Molded Flat Cone Design
• Proprietary Composite Poly/Glass Fiber Basket
• 2″ Vented KSV Voice Coil Former
• Chrome Push Terminals
• 3.8″ Mounting Depth
• 400 Watts RMS/800 Watts Max

Specifications –
• Nominal Impedance: single 4 ohm
• BL: 17.568 tm
• Inputs: Dual Coil
• Subwoofer Frequency Range: 33Hz – 450Hz
• Voice Coil Size: 2 in
• Material: Injection Polypropylene
• Magnet Size: 140 oz
• Sensitivity (1W / 1M): 84 dB
• Cutout Diameter: 11″ (281mm)
• Mounting Depth: 3.8″
• Spl: 84db
• No: 0.157%
• Qts: 0.526
• Qes: 0.597
• Qms: 4.458
• Mms: 204.196 g
• Cms: 122.804 Um/n
• Vas: 5.481 Ltr
• SD: 510.7 sqCM
• Fs: 33hz
• Test Impedance: 6.8-ohm
• VC Impedance: 4-ohm
• Size: 12″ shallow
• Sensitivity: 84 dB
• Frequency Response: 33Hz – 450Hz
• Voice Coil Size: 2″
• Power Handling (RMS/Peak): 400 / 800 watts
