MTX X3-17-THUNDER6

Sale!

Original price was: $3,299.94.Current price is: $2,999.95.

MTX X3-17-THUNDER6



X3-17-THUNDER6 OVERVIEW

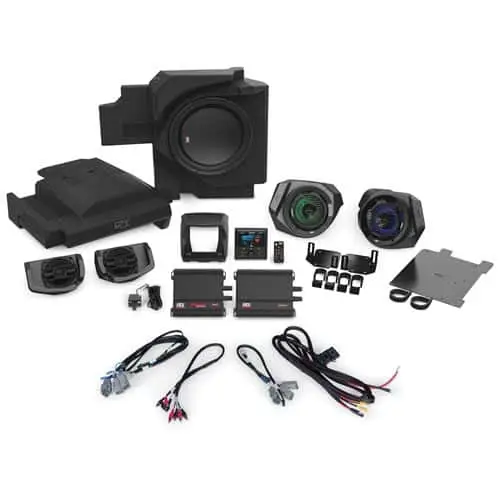

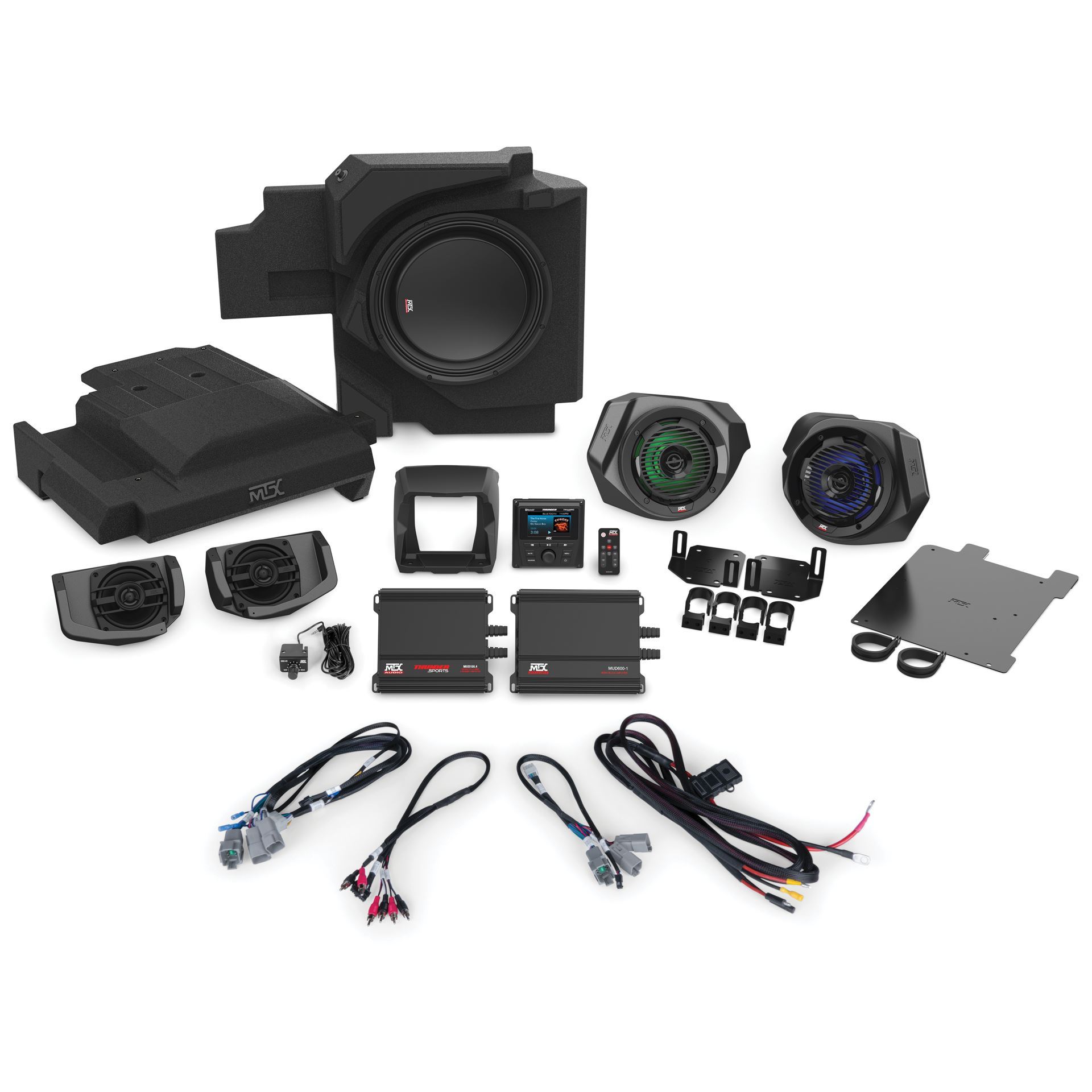

The X3-17-THUNDER6 audio kit is a complete plug and play 6-speaker audio system designed for select Can Am Maverick X3 vehicles. The heart of this system is the MTX AWMC3 media receiver that mounts on the top center dash using the included custom dash kit. The package includes a set of our lower X3-17-FS-L front speaker pods designed to install easily using our Fully Adjustable, Single Tool (F.A.S.T.) mounting system and feature integrated RGB. Also included is a set of our upper X3-17-FS-U speaker pods that mount to the existing factory dash panels and were built with our Rider Aligned Acoustical Design (R.A.A.D.) to deliver more sound to the riders position than any other on the market. Bass is handled by a pair of our X3-17-SW-D/P sub enclosures featuring an industry first 12-inch woofer design. These low profile, high output enclosures are down firing, mount under the seats and do not interfere with seat travel or height position for factory or aftermarket seats. System power comes from a combination of our MUD100.4 4-channel and MUD600-1 mono block amplifiers delivering 1000 watts of output power. The entire system features integrated wiring harnesses with integrated waterproof connections in a plug and play design.



MTX X3 kits are compatible with the following Can-Am models:
Model 2017 2018 2019 2020 2021 2022
X3 Turbo / X3 Max Turbo Yes Yes Yes
X3 Turbo R / X3 Max Turbo R Yes Yes Yes
X3 DS Turbo / X3 Max DS Turbo Yes Yes
X3 DS Turbo R / X3 Max DS Turbo R Yes Yes Yes Yes
X3 DS Turbo RR / X3 Max DS Turbo RR Yes Yes Yes
X3 RS Turbo R / X3 Max RS Turbo R Yes Yes
X3 RS Turbo RR / X3 Max RS Turbo RR Yes Yes Yes Yes
X3 X DS Turbo Yes
X3 X DS Turbo R / X3 Max X DS Turbo R Yes Yes Yes Yes
X3 X DS Turbo RR / X3 Max X DS Turbo RR Yes Yes Yes
X3 X MR Turbo Yes Yes Yes Yes
X3 X MR Turbo R Yes Yes
X3 X MR Turbo RR / X3 Max X MR Turbo RR Yes Yes Yes
X3 X RC Turbo Yes Yes Yes Yes
X3 X RC Turbo RR Yes Yes Yes
X3 X RS Turbo R / X3 Max X RS Turbo R Yes Yes Yes Yes
X3 X RS Turbo RR / X3 Max X RS Turbo RR Yes Yes Yes



AWMC3* Key Features

  • 3″ Full Color TFT Display
  • SiriusXM Radio Ready**
  • AM / FM / WB Tuner
  • Bluetooth Audio Streaming
  • Internal Power Amplifier
  • Weather Resistant (IP66)
  • 2 Sets of Preouts (Front / Rear)
  • Selectable EQ
  • Backlit Control Buttons
  • **SiriusXM antenna/receiver and external AM/FM antenna not included.



X3-17-FS-L Key Features

  • All-Weather Construction with UV Inhibitor
  • Custom Fit for X3 Kick Panel
  • 6.5″ Coaxial Speaker
  • 50-Watt RMS Power
  • Integrated RGB Lighting
  • Custom Mounting Bracket with Fully Adjustable, Single Tool (F.A.S.T.) Technology for Easy Installation

X3-17-FS-U Key Features

  • All-Weather Construction with UV Inhibitor
  • Custom Fit for X3 Dash Panel
  • No Cutting Required
  • 4″ Coaxial Speaker
  • 50-Watt RMS Power
  • Quick Mount Design with Rider Aligned Acoustical Design (R.A.A.D.) for optimum sound

MUD100-4 Key Features

  • Compact Design Enables Installation Anywhere
  • Conformal Coated Printed Circuit Board that Resists Moisture
  • Fixed Crossovers
  • High and Low Level Inputs
  • 400-Watts RMS Power

X3-17-SW-D/X3-17-SW-P Key Features

  • Industry First 12″ Custom Fit Subwoofer Enclosure
  • 300-Watt RMS Power per Enclosure
  • Sealed Waterproof Underseat Design
  • One Tool Installation System (O.T.I.S.) Reduces Installation Time
  • Mounts Beneath the Driver/ Passenger Seats
  • Does not Interfere With Seat Position or Height

MUD600-1 Key Features

  • High Efficiency Class D Topology
  • Compact Design Enables Installation Anywhere
  • Conformal Coated Printed Circuit Board that Resists Moisture
  • Fixed Crossovers
  • High and Low Level Inputs
  • 600-Watts RMS Power

Plug and Play Connections

The X3-17-THUNDER6 includes all the wiring required to connect each component. All wiring is ruggedly designed to endure the harsh environments X3s often find themselves in. All wires are terminated with the appropriate plug for the component being connected, making installation easy.

Installation Videos

2017 and newer X3 Thunder 6 Kit Installation

SUPPORT FILES
Owners Manual X3-17-THUNDER6 Carton Insert (4 pages) 1 MB View | Download
Owners Manual MTX006228 X3-17-SW-P Manual (12 pages) 2 MB View | Download
Owners Manual MTX006224 X3-17-FS-U Manual (16 pages) 3 MB View | Download
Owners Manual X3-17-FS-L Manual (20 pages) 6 MB View | Download
Owners Manual MTX006226_X3-17-SW-D_Manual.pdf (12 pages) 2 MB View | Download
Owners Manual X3-17-DK Manual (12 pages) 2 MB View | Download
