MTX UNI-PRCAA (RIDE COMMAND DIRECT FIT)

Sale!

Original price was: $599.95.Current price is: $549.95.

MTX UNI-PRCAA (RIDE COMMAND DIRECT FIT)



SKU: UNI-1-PRCAA

UNIVERSAL AUDIO PACKAGE WITH AMPLIFIER AND 2 ROLL CAGE SPEAKERS – FOR POLARIS

Amplifier and 2 Roll Cage Speaker for use with Polaris RideCommand

Powerful, Two-Speaker MTX Extreme Sports Sound System for Use with RideCommand

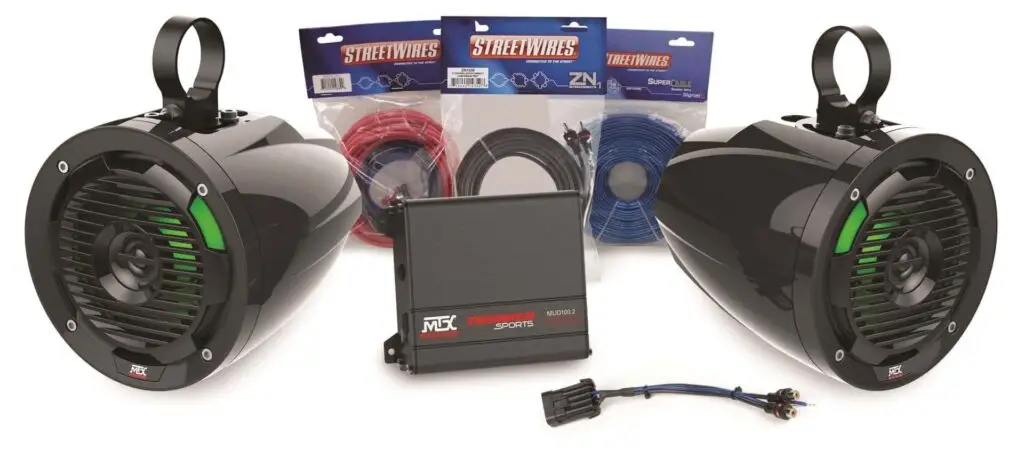

The UNI-1-PRCAA is a package that includes everything you need to take your RideCommand equipped Polaris UTV to the next level in sound. The kit includes the MTX MUD100.2 which is the most compact amplifier that MTX has ever made. This unit features full range class D topology that delivers exceptional sound quality and excellent thermal efficiency. The unit includes 2 channels that are capable of delivering 100-watts of RMS power per channel at 2Ω, perfect power for driving the included all-weather speakers, one per channel. The MUD100.2 connects directly to the audio output on the RideCommand with an OEM plug to ensure secure connection. The two MUD65PL roll cage speakers can project amazing sound to get you rocking big time. Crank them up and enjoy the ride.



MUD100.2 Key Features

  • Compact Design Enables Installation Anywhere
  • Conformal Coated Printed Circuit Board that Resists Moisture
  • Fixed Crossovers
  • High and Low Level Inputs
  • 200-Watts RMS Power



MUD65PL Key Features

  • Weather Resistant 6.5″ Speaker Pods
  • Fits Bars with Diameters of 1.75″, 1.85″, and 2″
  • Internal Crossover Network
  • ABS Impact Resistant Grille with UV Inhibitor
  • Integrated RGB Lighting
  • Optional Remote Control and Wiring Harness Available for Custom Color Creation (MUDLEDC)



PRCAA Key Features

  • Direct Plug and Play Application
  • OEM Connection to RideCommand Output
  • Stereo RCA Connection from RideCommand to Amplifier
  • Integrated Turn-on Wire for Amplifier



Wiring Included

  • PS1K-10 Power Kit for Connecting Amplifier to the Battery
  • ZN1230 Stereo Cable for Connection of the PRCAA to the Amplifier
  • SCP1850BL 18-Gauge Speaker Wire for Connecting MUD65PLs to Amplifier



This package works with Polaris vehicles equipped with RideCommand and roll cages between 1.5″ and 2″ roll cages.

SPECIFICATIONS
Amplifier
Description 2-Channel
4Ω RMS Power Output 50W x 2 Channels
2Ω RMS Power Output 100W x 2 Channels
1Ω RMS Power Output NA
Topology Full Range Class D
THD <1.0%
Frequency Response 20Hz – 20kHz
Crossover Fixed HPF/LPF @ 80Hz, 12dB/Oct
Max Sensitivity 200mV
Maximum Input Signal 5V
Dimensions 4.65″ x 5.71″ x 1.61″
Speaker
Speaker Size 6.5″, 2-Way
Sensitivity 86dB
Impedance 86dB
Frequency Response 70Hz-20kHz
Dimensions 9.34″ x 7.09″ x 8.76″
SUPPORT FILES
Owners Manual MTX005835B MUD65PL Owners Manual (8 pages) 504 KB View | Download
Owners Manual MTX004785 MUD100_2 Owner’s Manual RevB (28 pages) 968 KB View | Download
