Description
SKU: RZR-14RC-THUNDER3
3-SPEAKER AUDIO SYSTEM FOR 2014+ POLARIS RZR VEHICLES W/RIDECOMMAND
3-speaker amplified audio system for 2014+ Polaris RZR vehicles w/RideCommand
RZR-14RC-THUNDER3 Overview

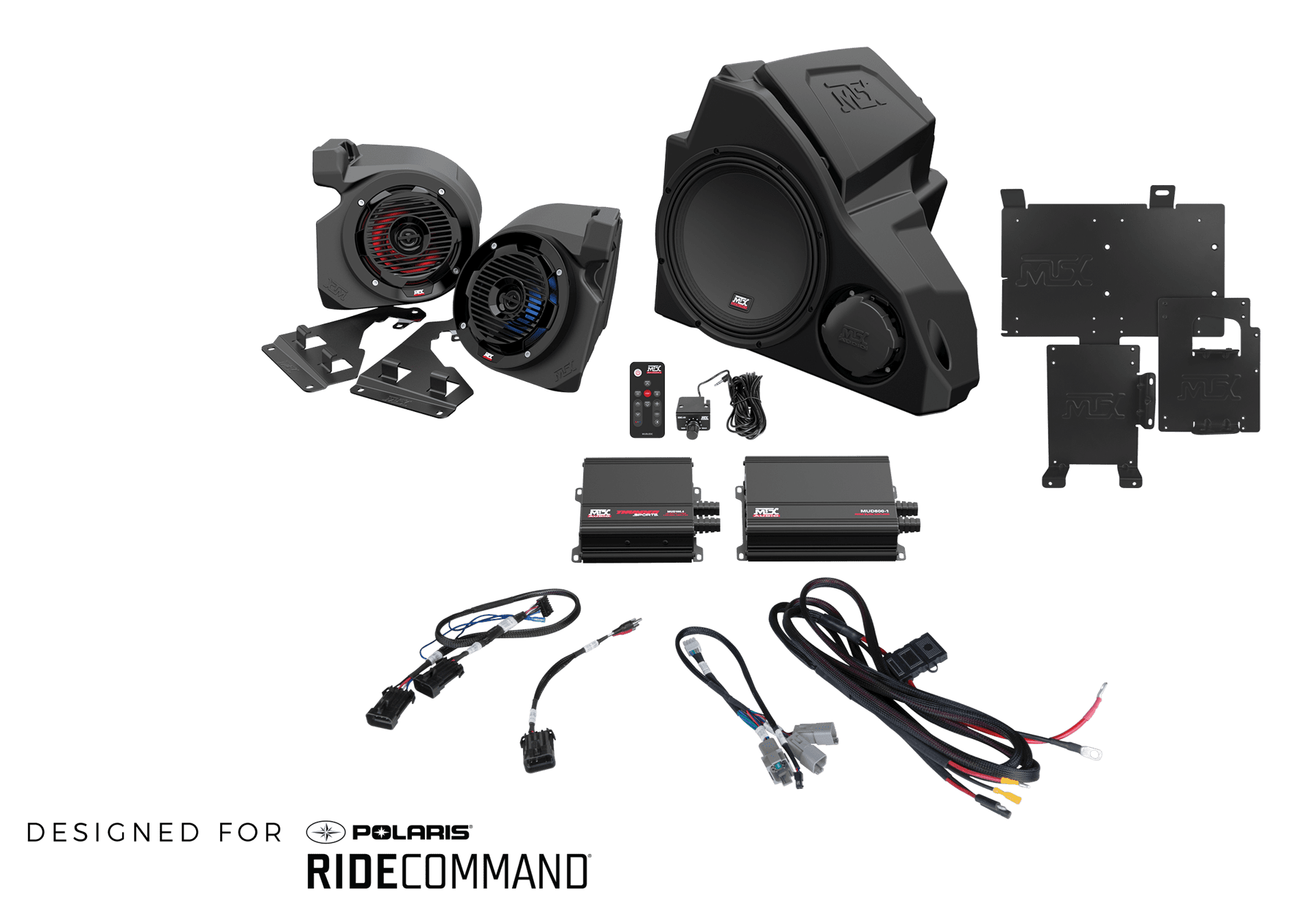

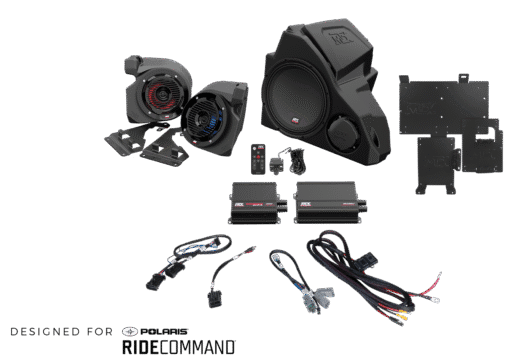

The RZR-14RC-THUNDER3 audio kit is a complete plug and play 3-speaker audio system designed for the Polaris RZR platform. This kit fits models that have installed RideCommand systems*. It incorporates a direct connect harness allowing use of the RideCommand as a source unit with the RZR-14-FS front speaker pods featuring integrated RGB lighting and the RZR-14-SW subwoofer enclosure. The included MUD100.4 4-channel amplifier and a MUD600-1 monoblock amplifiers connect to the Ride Command system and provide power to all speakers via integrated harnesses that simplifies the installation, which gets you get out of the garage and back to riding quicker. *Not Compatible with Pro XP/ Pro R Model RZR’s or existing factory audio systems.
MTX RZR kits are compatible with the following RZR models:
| Non-Pro XP Models | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 |
|---|---|---|---|---|---|---|---|---|---|
| RZR 900 |  |
|
|
|
|
||||
| RZR 900 XC | |
|
|
||||||
| RZR 2 900 EPS | |
|
|
|
|
||||
| RZR 4 900 EPS | |
|
|
|
|||||
| RZR S 900 | |
|
|
|
|
|
|||
| RZR S 1000 | |
|
|||||||
| RZR S4 1000 | |
||||||||
| RZR XP 1000 | |
|
|
|
|
|
|
|
|
| RZR XP Turbo | |
|
|
|
|
|
|||
| RZR XP Turbo S | |
|
|
|
|||||
| RZR XP Dynamix Edition | |
|
|||||||
| RZR XP 4 1000 | |
|
|
|
|
|
|
|
|
| RZR XP 4 Turbo | |
|
|
|
|
|
|||
| RZR XP 4 Turbo S | |
|
|
|
|||||
| RZR XP 4 Turbo Dynamix Edition | |
|
|||||||
| RZR XP 1000 Trails and Rocks | |
|
|
|
|||||
| RZR XP 1000 High Lifter | |
|
|
|
|
|
|
|
|
| RZR XP 4 1000 High Lifter | |
|
|
|
|
|
|
||
| RZR Trail [Sport, Premium, Ultimate] | |
|
|
||||||
| RZR Trail 5 [Sport, Premium, Ultimate] | |
|
|
*Not Compatible with Pro XP/ Pro R Model RZR’s or existing factory audio systems.
**Non-RC RZR models must have dash dry box, Polaris part number 5439789-070, for dash mount kit to work
RZR-14-FS Key Features
- All-Weather Construction with UV Inhibitor
- Custom Fit for RZR Kick Panel
- No Cutting or Drilling Required
- 6.5″ Coaxial Speaker
- 50-Watt RMS Power
- Integrated RGB Lighting
- Custom Quick Mount Bracket with POD-LOC Technology for Easy Installation
MUD100-4 Key Features
- Compact Design Enables Installation Anywhere
- Conformal Coated Printed Circuit Board that Resists Moisture
- Fixed Crossovers
- High and Low Level Inputs
- 400-Watts RMS Power
RZR-14-SW Key Features
- 10″ Custom Fit Subwoofer Enclosure
- 400-Watt RMS Power
- Sealed or Ported Functionality
- QuIPS (Quick Install Port Seal) Technology
- Mounts Behind Dashboard on Select RZR Models
MUD600-1 Key Features
- High Efficiency Class D Topology
- Compact Design Enables Installation Anywhere
- Conformal Coated Printed Circuit Board that Resists Moisture
- Fixed Crossovers
- High and Low Level Inputs
- 600-Watts RMS Power
Plug and Play Connections
The RZR-14RC-THUNDER3 includes all the wiring required to connect each component. All wiring is ruggedly designed to endure the harsh environments RZRs often find themselves in. All wires are terminated with the appropriate plug for the component being connected, making installation easy.
Installation Videos
2019 and newer RZR Turbo S Thunder 3 Kit Installation
2019 and newer RZR XP/XP4 Thunder 3 Kit Installation
2014-18 RZR XP/XP4 Thunder 3 Kit Installation
Kick Panel Speaker Installation
Loaded Subwoofer Enclosure Installation
External Base Controller Integration
Amplifier Gain Settings
SUPPORT FILES
| Owners Manual | RZR-14-FS Owners Manual (8 pages) 6 MB | View | Download |
| Owners Manual | RZR-14-SW Owner’s Manual (16 pages) 11 MB | View | Download |
| Owners Manual | MUD600-1 Owners Manual (24 pages) 274 KB | View | Download |
| Owners Manual | MUDLEDC Owners Manual (4 pages) 334 KB | View | Download |
| Owners Manual | MUD100-4 Owner’s Manual (28 pages) 1 MB | View | Download |
