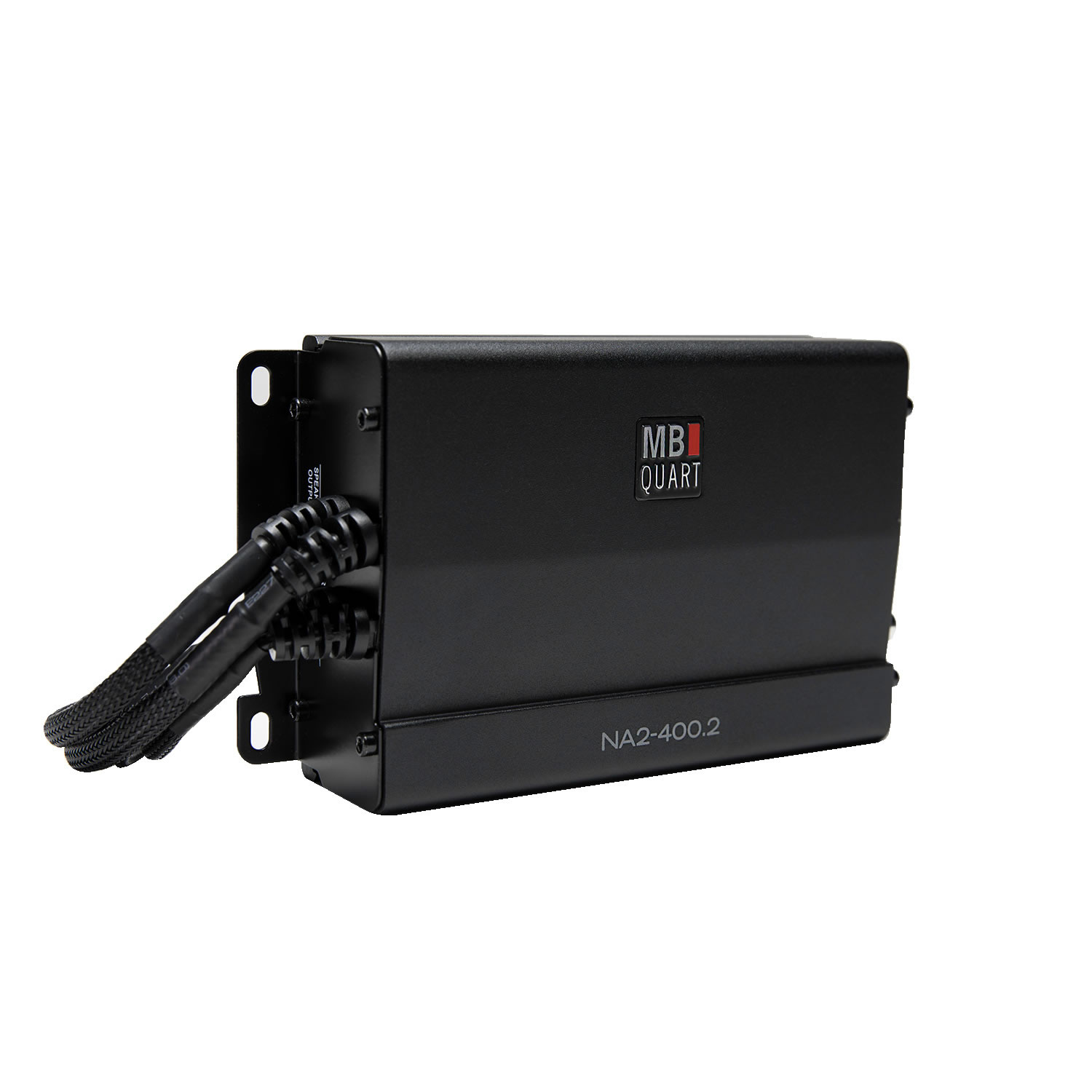

MB QUART NA2-400.2

Description

                     CLASS
Full Range Class D

• • VARIABLE VOLTAGE
    0.2V~9V
  • SIGNAL TO NOISE RATIO
    >90dB
  • FREQUENCY RESPONSE
    20Hz-20kHz
  • CROSSOVER TYPE
    Electronic 12dB Per Octave
  • LOW PASS CROSSOVER
    SWITCH LOW PASS 300 HZ

• BASS BOOST
  0-12dB@45Hz
• SUBSONIC FILTER
  60Hz
• POWER @ 2-OHMS
  2 x 200W
• POWER @ 4-OHMS
  2 x 100W
• TOTAL CHANNELS
  2
• AUDIO INPUTS
  RCA
• POWER TERMINAL 12V/GND
  Molex 10 ga
• SPEAKER TERMINAL WIRE GAUGE
  Molex Plug Connector
• FUSING
  1 x 30 Amps
• CERTIFICATIONS
  Marine & Powersports
• DIMENSIONS
  3.70 X 5.51 X 1.77 in
  9.4 X 14.0 X 4.5 cm
• WEIGHT
  2.12 lbs (0.96 kg)



• MARINE GRADE PROTECTION: YES
  Amplifiers are ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
• PRE-AMP CIRCUITRY: Q-Stasis Pre Amplifier Stage
  The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality
• INPUTS: 1 Pair, RCA Nickel-Plated
  High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
• OPERATION MODE: Two channel operation
  Flexible installation allows this amplifier to run in two channel or bridged mono mode.
• CROSSOVER / SIGNAL SHAPING: Switched FULL / LPF / HPF
  Complete control of amplifier signal, essential when using two or more amplifiers
• CLASS / TOPOLOGY: Full Range Class D
  Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
• OUTPUT DEVICES TECHNOLOGY: PWM MOSFET Power Supply
  Stable power through the PC board with minimal heat generation
• HEAT SINK: Aluminum
  Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
• POWER SUPPLY: Simpatico Coil Design
  The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
• OUTPUT CONNECTIONS: Quick Dissconect Wires, RCA Connections
  Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
• CONNECTIONS TYPE: Nickel-plated connections
  Nickel plated corrosion resistant connections
• DIAGNOSTICS: Three-stage protection circuits
  Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
• MARINIZED / WATERPROOF: YES
  Water resistant for durability in any environment
