CROSSOVER FREQUENCY RANGE
CH1 & CH2
Switch Low Pass 300 Hz
BASS BOOST
0-12dB@45Hz
SUBSONIC FILTER
60Hz
POWER @ 2-OHMS
1 x 400W
POWER @ 4-OHMS
1 x 200W
TOTAL CHANNELS
Mono
AUDIO INPUTS
RCA
POWER TERMINAL 12V/GND
Molex 10 ga
SPEAKER TERMINAL WIRE GAUGE
Molex Plug Connector
FUSING
1 x 30 Amps
CERTIFICATIONS
Marine & Powersports
DIMENSIONS
3.70 X 5.51 X 1.77 in
9.4 X 14.0 X 4.5 cm
WEIGHT
2.09 lbs (0.95 kg)
MARINE GRADE PROTECTION: YES
Amplifiers are ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
PRE-AMP CIRCUITRY: Q-Stasis Pre Amplifier Stage
The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality
INPUTS: 2 Pair, RCA Nickel-Plated
High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
OPERATION MODE:Mono operation
Deisgned to power 1 subwoofer or subwoofer system
CROSSOVER / SIGNAL SHAPING: LPF
Complete control of amplifier signal, essential when using two or more amplifiers
CLASS / TOPOLOGY: Full Range Class D
Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
OUTPUT DEVICES TECHNOLOGY: PWM MOSFET Power Supply
Stable power through the PC board with minimal heat generation
HEAT SINK: Aluminum
Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration
POWER SUPPLY: Simpatico Coil Design
The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices

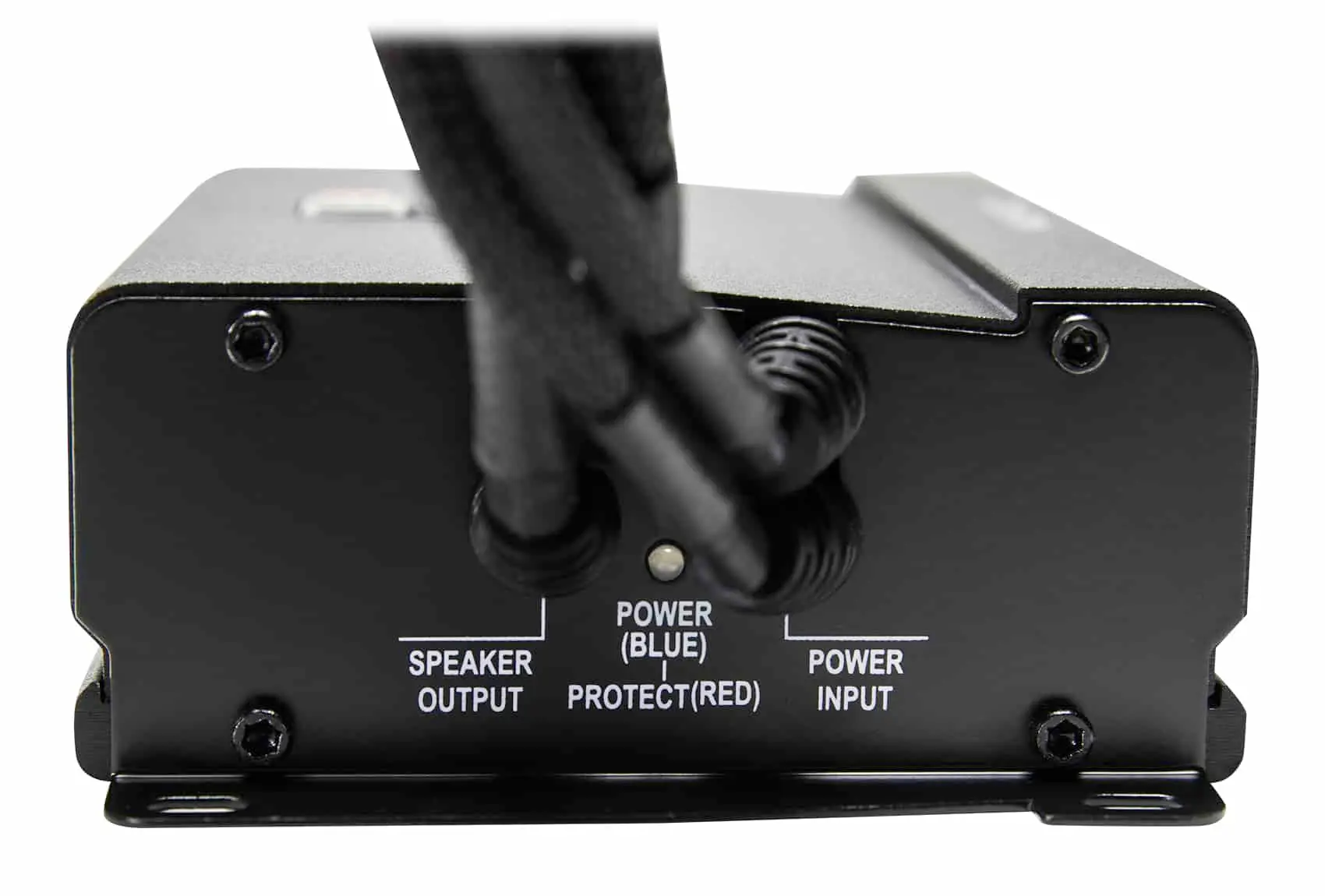

OUTPUT CONNECTIONS: Quick Dissconect Wires, RCA Connections
Quickly remove amplifer when you are putting machine up for the winter of as a security precaution
DIAGNOSTICS: Three-stage protection circuits
Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
MARINIZED / WATERPROOF: YES
Water resistant for durability in any environment
