| Source Unit | SOURCE UNIT INTEGRATION: Adapters to integrate with Polaris RIDE COMMAND (The actual RIDE COMMAND source unit is NOT INCLUDED). |
|---|---|
| Front Speakers | The front 6.5 inch coaxial speakers are the NP1-116 two way speakers. |
| Front Speakers Mounting | High impact HDPE RANGER specific left & right speaker panels are an ultra-compact design that takes up minimal space. |

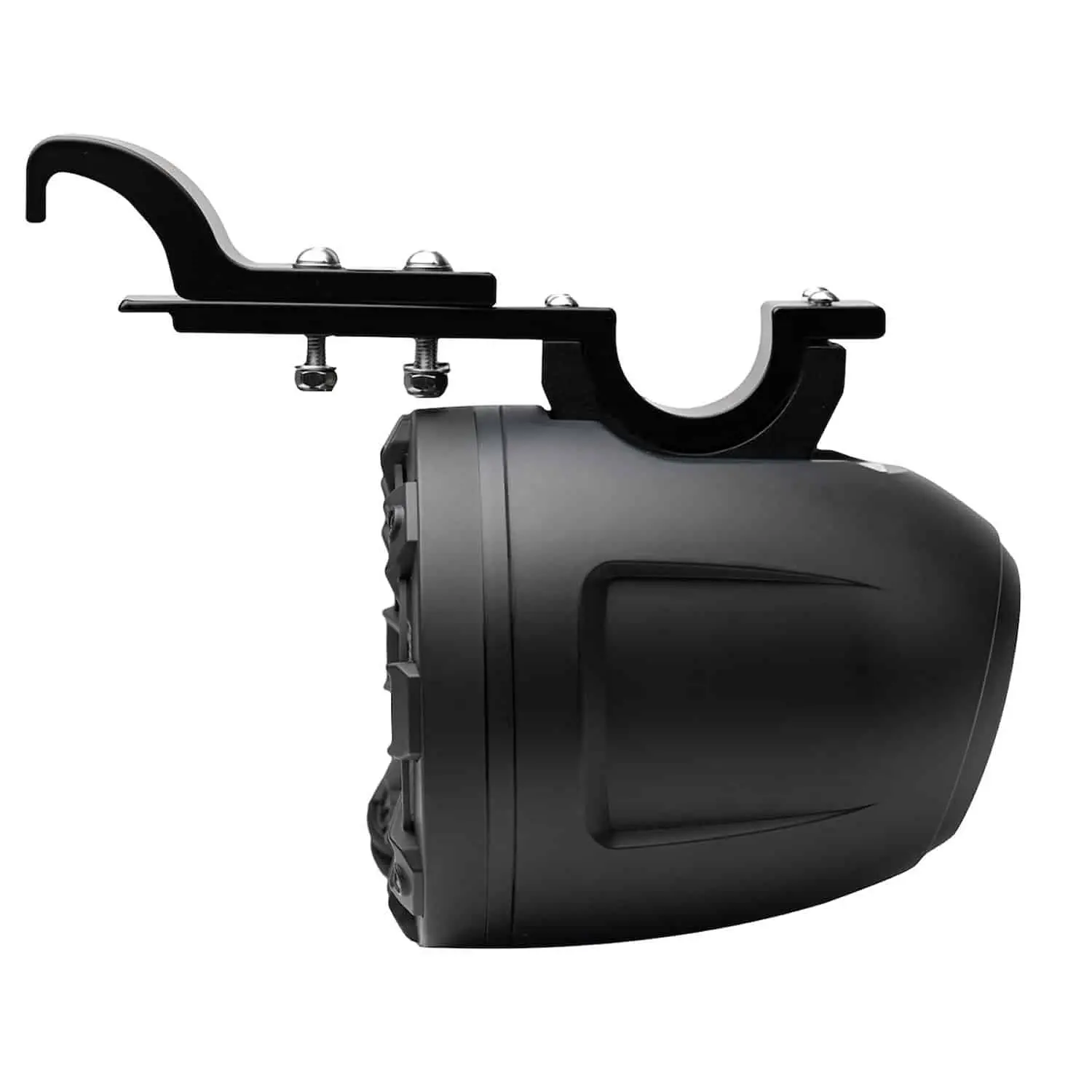

| Rear Speakers | The rear 6.5 inch pod speakers are the NPT1-116BBG two way speakers that feature profile cage mounting hardware. |
| Rear Speakers Mounting | The rear speaker pods mount to the OEM cage with the included profile cage mounting hardware. |
| Subwoofer | Dual voice coil 10 inch subwoofer in a high impact HDPE composite enclosure. |
| Subwoofer Mounting | The subwoofer enclosure fits perfectly under front passanger seat and features extra storage pockets. |
| Full Range Amplifier | NA2-400.2RC: 400 Watt Two Channel Class D, Compact Powersports Amplifier that has been engineered for superior integration with RIDE COMMAND. |
| Full Range Amplifier Mounting | RANGER amplifier mounting bracket is included. |
| Harnessing | Full system harness capable of accommodating source unit, 2 amplifiers, which power 4 speakers, and the subwoofer. |
| Accessories | MBQRG-ACC-1: RANGER Radio and Dual Amplifier Harness is included with the system. |
Compatible Vehicle Fitment
Polaris RANGER 2018-Current with RIDE COMMAND
Compatible Product Models
Polaris RIDE COMMAND
Marine Grade Protection / IPX Rating
MB Quart has engineered a select group of UTV-tuned audio systems that are perfectly designed for the Polaris RANGER. It is essential that every component installed in a RANGER be torture tested to be as reliable as it can be in such a harsh environment. This system is made up of multiple components that have different IPX ratings. The speakers and subwoofer are IPX67 rated. The amplifiers are IPX5 rated.
Source Unit Features
Integration with RIDE COMMAND, a high-tech source unit with an off-road display that acts as the hub and integrates your phone, GPS, audio, and communication systems. The actual RIDE COMMAND source unit is NOT INCLUDED.
Speaker Features
These speakers are meticulously engineered to fit in the Polaris RANGER. They include a 1″ Titanium Dome Tweeter that will deliver natural sounding high frequency response, while producing high volume. Injection molded composition Polypropylene cone produces impactful bass with minimal cone flex. The Composite (UV Resistant ASA+Fiberglass) frames are incredibly strong and lightweight. The entire assembly makes it as indestructible as the RANGER.
Amplifier Features
High Efficiency Class D Amplifier Compact Powersports Subwoofer Amplifier.
Subwoofer Features
400 Watt Specific 10 inch Subwoofer System includes 10 inch, Dual 4 ohm Subwoofer, RANGER Subwoofer Enclosure with storage pockets, powered by the 400 Watt High Effeciency Class D amplifier.
Mount / Harness
Plug and Play Harness. Waterproof Connectors with pre-measured wires. No guesswork, no installation mistakes.
Time and Tools
Standard hand tools are required. See the manual for time on each of the different components.

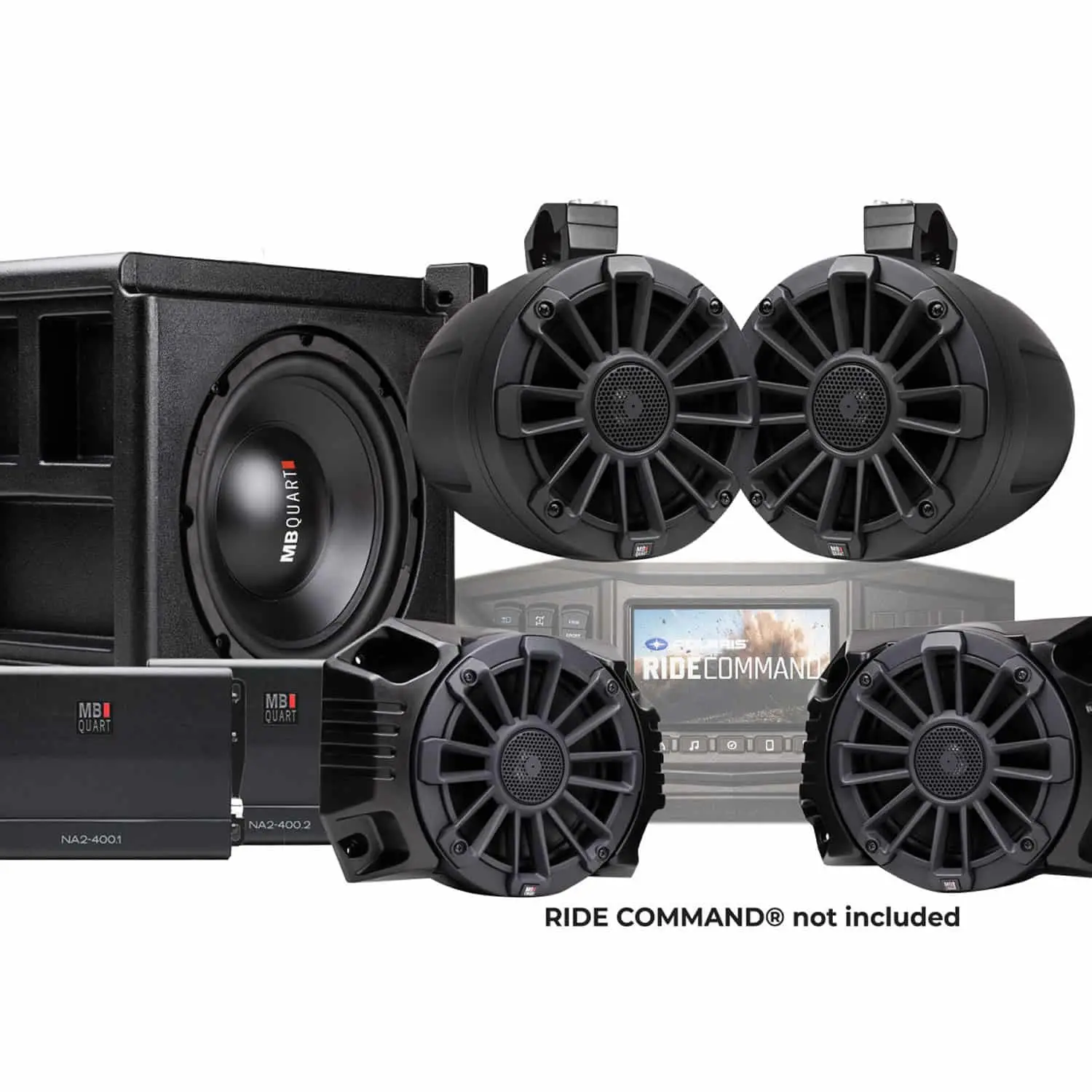

MBQRG-STG5-RC-1 800 Watt STAGE 5 Polaris RANGER Tuned System designed for RIDE COMMAND
