DS18 SB24BT

DS18 SB24BT



SPECS

SKU
SB24BT
Nominal Size
37″ / 940mm
Total Watts (Peak)
1200W
RMS Power @ 4 ohm (Internal Amp)
200W
MAX Power @ 4 ohm (Internal Amp)
400W
Frequency Response
45Hz-20KHz
Storage Temperature
5F ~ 176F (-15C ~ 80C)
Operation Temperature
32F ~ 140F (0C ~ 60C)
Operation Voltage
12 Volts (10~16 Volts Range)
BT Version
v5.0
Audio Protocols
A2DP
Range
>33ft (10m)* / Class 2

BODY / FEATURES

Marine Grade Type
IPX5
Body Material / Color / Finish
Aluminum / Oxidized Black Hemp Sand
Grill Type
Steel Mesh
Qty on box
1 Pcs
Clamps
3 Set (Tube Clamp Adjustable 1.5″ ~ 2.25″)
Front Logo
Yes
RCA Line Out (Pre-Amp)
No
Aux Line Input
Yes, (720mV)
EQ / DSP
5 Preset EQ (for BT and USB Mode)
Remote Out
No
USB Player
Yes (WMA, MP3 files)
USB Charger
Yes (1Amp)
Buttons / Controls
Yes (Power, Mode, Play/Pause, Fwd, Bwd, Vol+/Vol-)
Remote Control
Yes (IR Card Type)
Illumination
Yes (Blue Backlit)

WOOFER SPECIFICATIONS

Nominal Diameter
3″ / 76.2mm (8 Pcs)
Voice Coil Diameter
0.8″ / 20.4mm
Voice Coil Former Material
Kapton
Cone Material
Spk1: PPI / Spk2: Paper
Surround Material
Spk1: Rubber / Spk2: Cloth
Basket Material
Steel
Magnet Material
Ferrite
Motor Diameter
2.36″ / 60mm

TWEETER SPECIFICATIONS

Nominal Diameter
0.94″ / 24mm (2 Pcs)
Voice Coil Diameter
0.8″ / 20.4mm
Type
Dome
Diaphragm Material
Soft Dome
Magnet Material
Neodymuim
Crossover
6dB/oct

AMPLIFIER SPECIFICATIONS

Amplifier Class
Class A/B
Amplifier Type
Stereo Full Range
Number of Channels
4
Minimum Impedance
4 ohm
Signal to Noise Ratio
68dB
T.H.D.
1% @ 1000Hz
Channel Separation
60dB
Audio Source
BT, USB, AUX
Power Input Wire Size
2x14ga
Recommend Fuse Size
15A
MAX Current Draw
11A
Thermal Protection
Yes (>284?F / 140?C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
No

MEASUREMENTS

Overall Width
37.8″ / 960 mm
Overall Height
3.98″ / 101 mm
Overall Depth
3.98″ / 101 mm
Gross Single Unit Weight (lb)
17
Single Unit Box Dimensions W x L x H (Inches)
44.5 x 7.75 x 8
Quantity of Units in Master Carton
1
Gross Master Carton Weight (lb)
17
Master Carton Dimensions W x L x H (Inches)
31.25 x 7.75 x 8

Show Less

PRODUCT OVERVIEW

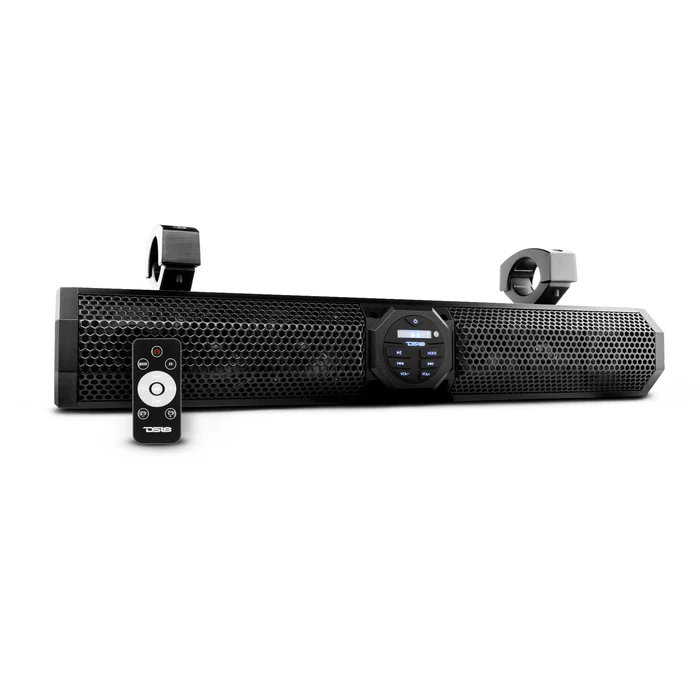

DS18 SB24BT

24″ Marine Water Resistant Amplified with Bluetooth Sound Bar Speaker System 6 Speakers 600 Watts

DS18’s HYDRO SB24BT is a powerhouse of audio excellence designed to elevate your outdoor experience!
Equipped with a waterproof built-in amplifier, this sound bar packs a punch at 600W MAX Power for the four 3-inch woofer drivers pre-installed in the system. Immerse yourself in high-fidelity sound that cuts through the noise of any terrain or water body, ensuring every note and beat is crystal clear and captivating.
Installation is a breeze with the strong clamping system, adjustable from 1.5 to 2.25 inches in diameter; guaranteeing a secure and stable setup no matter where your journey takes you. DS18’s HYDRO SB24BT is designed to seamlessly integrate into any setup.
Take control of your music with the easy-to-use control panel. Seamlessly switch between songs and folders using Bluetooth connectivity or utilize the USB slot option for even more versatility. DS18’s HYDRO SB24BT puts you in command, allowing you to curate your own personalized soundtrack for every adventure.
Crafted with marine-grade materials and an IPX5 rating, the SB24BT is specifically designed to withstand the harshest elements. Its aluminum body with oxidized black hemp sand finish not only exudes style but ensures durability for years to come. The steel mesh grill adds an extra layer of protection without compromising on sound quality.
Experience enhanced sound quality like never before with DS18’s HYDRO SB24BT!
