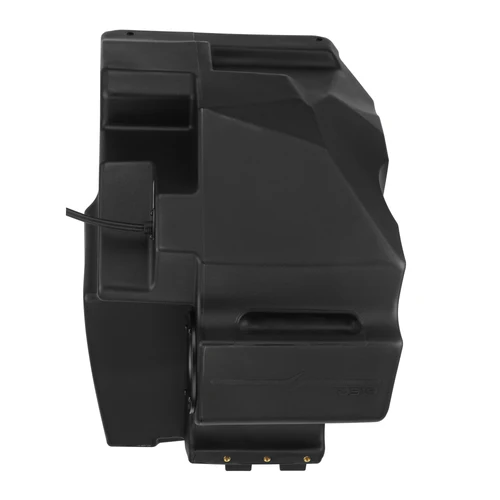

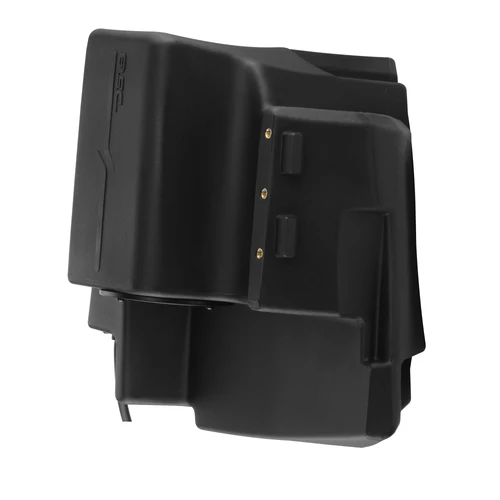

DS18 RZR-PROFSUB10LD

General Specifications

Nominal Diameter
10″ / 254mm
Total Impedance
2 Ohms (Parallel)
RMS Power Handling
600W
MAX Power Handling
1200W
Sensitivity (1w/1m)
92dB
Frequency Response
25Hz-250Hz
Recommended Low-Pass Crossover
120Hz
Enclosure Material
Polyethylene (PE)
IP Rating
IP65
Sold in Pair or Single
Single
Color / Finish
Black
OEM Fit
Yes
Compatible Model / Year
RZR-PRO / 2020-2024 2 & 4 Doors Models
Compatible Speaker Model
DS18 GEN-X10.4DCF Subwoofer

Subwoofer (GEN-X10.4DCF)

Voice Coil Diameter
2″ / 50.8mm
Voice Coil Former Material
Black Aluminum
Winding Material
SV
Cone Material
Non-Pessed Paper
Dust Cap Material
Carbon Fiber
Surround Material
Rubber
Basket Material
Steel
Magnet Material
Ferrite
Magnet Weight
81 Oz

Thiele & Small Parameters

Equivalent Volume
23.67L / 0.835ft3
Excursion (one way)
10.5mm
Free Air Resonance
37Hz
Mechanical Factor
5.07
Electrical Factor
0.76
Total Factor
0.66
Moving Mass
140.16g
Compliance
0.13mm/N
BL Factor
9.26
Voice Coil Inductance
0.38mH
Diaphragm Area
352.99cm2
DC Resistance
3.2 + 3.2 Ohms
