DS18 NXL-69/BK

DS18 NXL-69/BK

TECHNICAL DATA

SPECS

SKU
NXL-69/BK
Nominal Diameter
6×9″ / 152.4×228.6mm
Nominal Impedance
4 OHM
RMS Power Handing
125 Watts
Maximum Power Handing
375 Watts
Sensitivity (1w/1m)
92 dB
Frequency Response
40Hz.20KHz
Recommended Hi Pass Crossover
60Hz

SPECS

Voice Coil Diameter
1.4″ / 35.5mm
Voice Coil Former Material
Kapton
Winding Material
SV
Basket Material
High Temp Injection Molded Composite with UV Protection coating
Magnet Weight
24 OZ + 0.75 OZ

THIELE & SMALL PARAMETERS

Vas
51.43L / 1.81ft3
Xmax
6 mm
Fs
49 Hz
Qms
7.66
Qes
0.704
Qts
0.644
Re
3.1 OHM

MEASUREMENTS

Overall Diameter
7.4″ x 10.2″ / 189 x 260 mm
Front Mount Baffle Cutout
8.6″ x 5.9″ / 220 x 150 mm
Mounting Depth
3.11″ / 79mm
Overall Depth
4.52″ / 115 mm
Product Weight
10.5 lbs
Product Dimensions
17.75 x 12 x 5.5
M/C Weight
23 lbs
M/C Dimensions
18.25 x 12.5 x 11
M/C QTY
2
Sold In
Pair

Show Less

PRODUCT OVERVIEW

DS18 NXL-69/BK

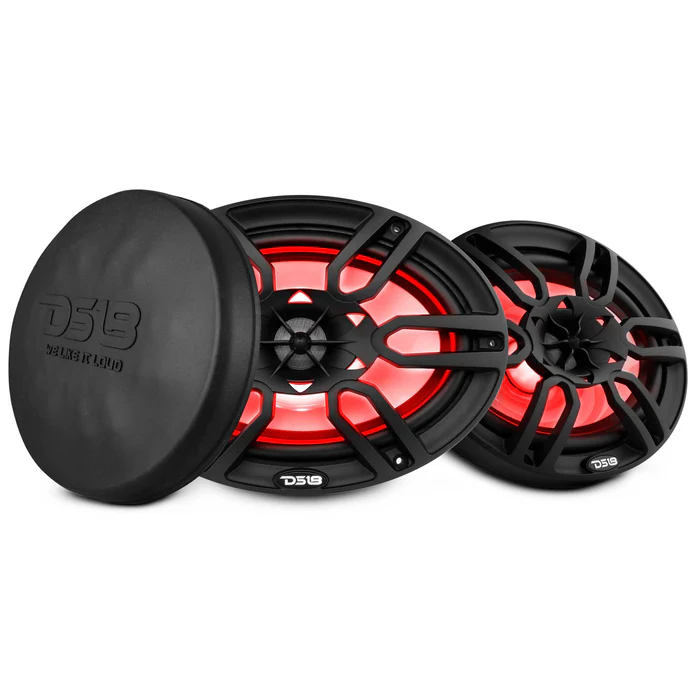

6×9” 2-Way Coaxial Marine Speaker With LED RGB Lights 125W RMS 4-Ohm – Black

DS18’s NXL-69 is the only way to take your marine audio experience to the next level. Made with precision and durability in mind, these speakers are IP-65 rated and built to withstand the elements.
With a power rating of 125W RMS, the NXL-69 delivers high volume and clarity, ensuring every note is heard even in open air settings. The 6×9 cone, accompanied by built-in coaxial tweeters, provides a wide sound range that will impress any audiophile.
Not only do these speakers offer exceptional sound quality, but they also come with integrated RGB lighting. Easily bring your system to life and create an ambiance that matches your mood or the occasion.
The NXL-69 is engineered to last for years, backed by extensive research and development. No matter how rugged your adventures get, these speakers will keep up, providing a tough and durable audio solution that exceeds expectations.
Experience the joy of powerful sound and outstanding performance with DS18’s NXL-69.
