CANAM X3 SXS AUDIO UNDER SEAT SUB PACKAGE

CANAM X3 SXS AUDIO UNDER SEAT SUB PACKAGE

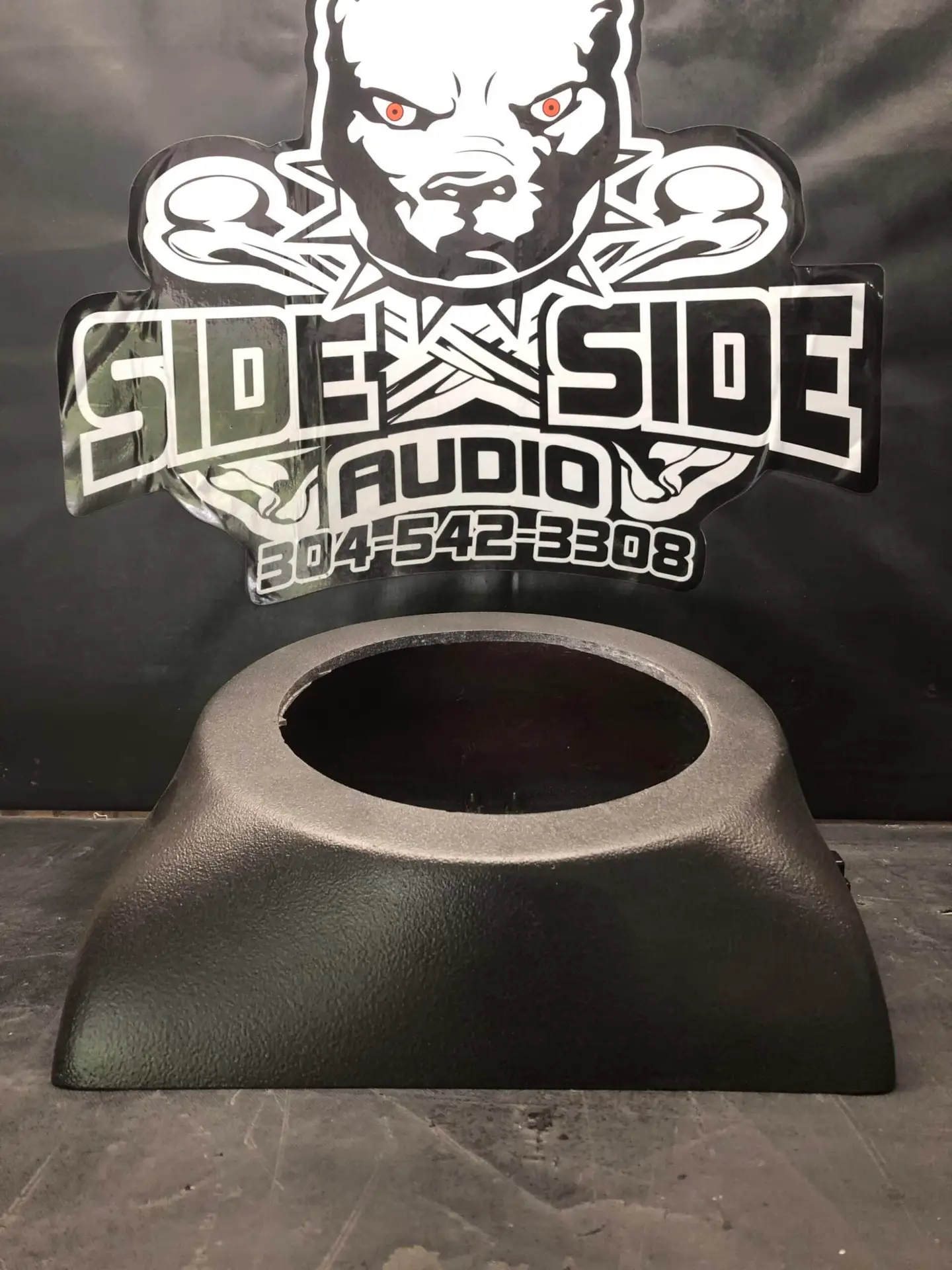

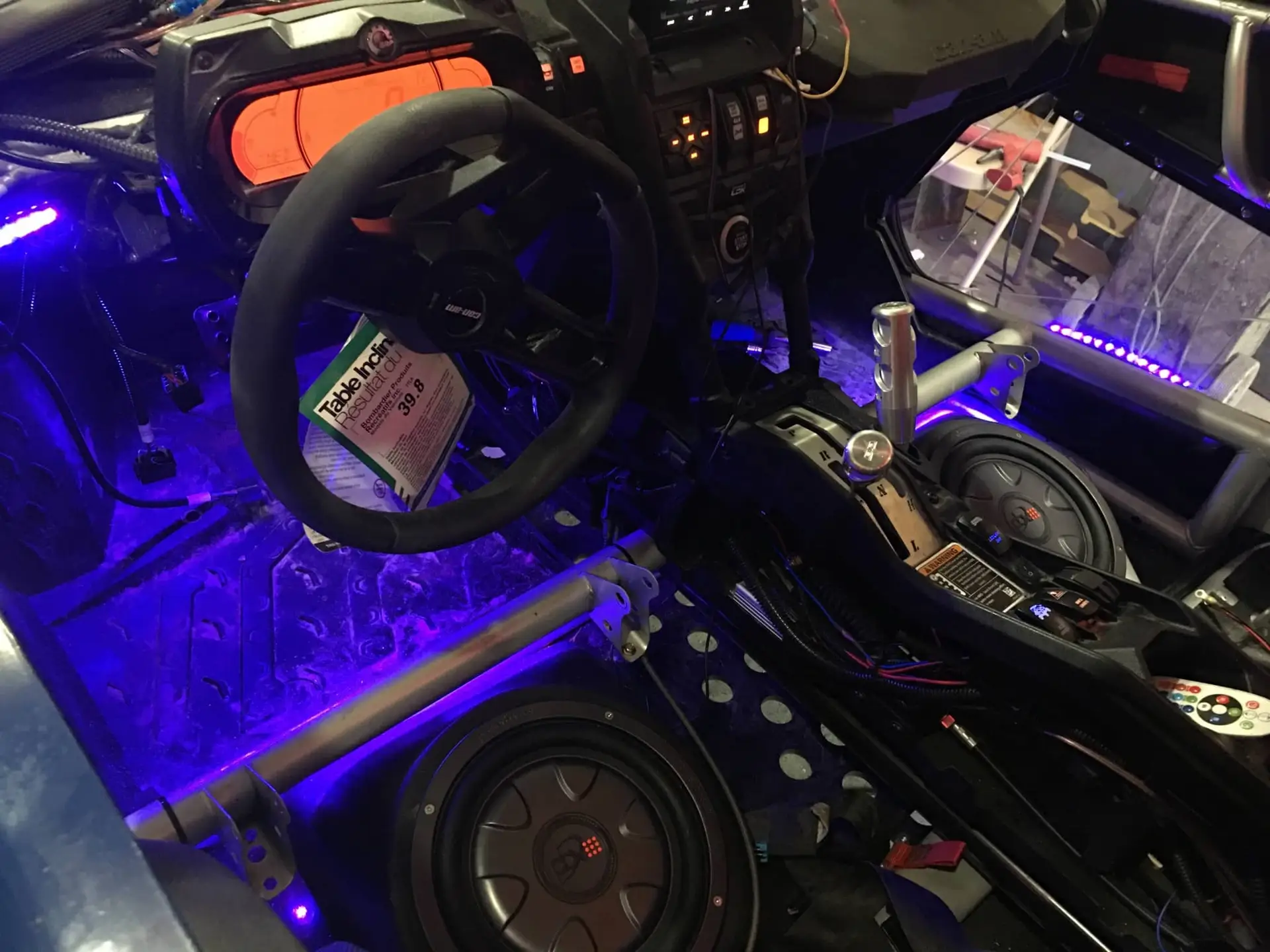

UNDER SEAT CANAM X3 (ALL YEARS) SUB ENCLOSURE . 100 PERCENT FIBERGLASS CONTRUCTION AND IS ONE OF THE FEW ENCLOSURES ON THE MARKET THAT ALLOW THE SEAT TO STILL SLIDE EVEN IN THE LOWEST POSITION!

SINGLE OR DUAL SUB KITS AVAILABLE

SUBS COME WITH THE POWER BASS XL1040TD SUBS STANDARD

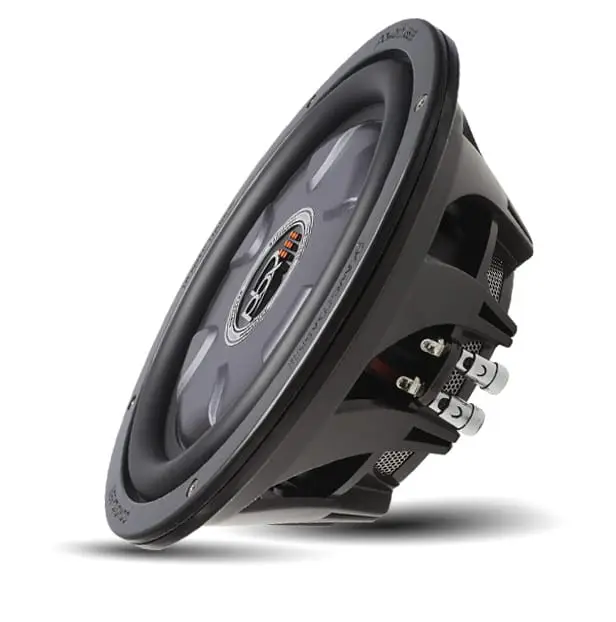

XL-1040TD 10″ DVC Shallow Mount Subwoofer

  • New PBX logo dust cap
  • 10″ Shallow Mount Dual 4-Ohm Subwoofer
  • 350 Watts RMS/700 Watts Max
  • Proprietary Single Piece Injection Molded Flat Cone Design
  • High Roll Santoprene® Surround
  • 2.0″ Vented KSV Voice Coil Former
  • Perimeter Aero-Vent Voice Coil Cooling Vents
  • Proprietary Non Resonance Polycarbonate/Glass Fiber Basket
  • Chrome Push Terminals
  • Optimally Designed for Small Sealed Enclosures



XL-1040T SHALLOW MOUNT 10″ SUB THAT CAN HANDLE THE POWER

Those seeking a shallow woofer that can handle more power in a tight space will find that our new XL-Shallow subwoofers are just the ticket.

The proprietary one piece cone gives accurate and efficient bass to a system without taking a whole lot of space. Designed to work best in a small sealed enclosure that will fit in most spaces that a standard woofer won’t opens up new possibilities for the most discerning music fan.

Using the same turbine style Poly/Glass Fiber basket as our standard XL subwoofers this shallower version offers all the features and reliability from the Xtreme family. Boasting a flat injection molded cone and inverted ferrite magnet these drivers come in nearly 2-inches shorter than their standard XL counterparts.

Specifications

  • Nominal Impedance: single 4-ohm
  • BL: 14.693
  • Inputs: Dual Coil
  • Subwoofer Frequency Range: 35Hz – 500Hz
  • Voice Coil Size: 2 in
  • Material: Injection molded Polypropylene
  • Magnet Size: 116 oz
  • Sensitivity (1W / 1M): 82.9 dB
  • Cutout Diameter: 9 5/16 in
  • Mounting Depth: 3.4″
  • Xmax: 7.5 mm
  • Spl: 82.9db
  • No: 0.123%
  • Qts: 0.487
  • Qes: 0.577
  • Qms: 3.655
  • Mms: 164.056 g
  • Cms: 127.039 uM/N
  • Vas: 21.02 Ltr
  • SD: 346.360 sqCM
  • Fs: 35hz
  • Test Impedance: 3.2-ohm
  • VC Impedance: 4-ohm
  • Size: 10″ shallow
  • Sensitivity: 82.9 dB
  • Frequency Response: 35Hz – 500Hz
  • Voice Coil Size: 2″
  • Power Handling (RMS/Peak): 350 / 700 watt
  • SUB PACKAGE COME COMPLETE WITH POWER GROUND AND REMOTE AMP ENCLOSURES AND SUB
  • THE DUAL DUB PACKAGES GET LARGER 600/1200 WATT AMPLIFIER
